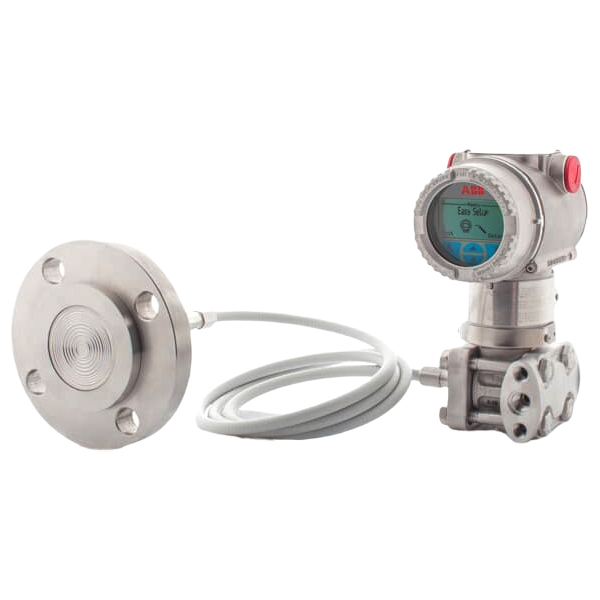

266DRH Differential Pressure Transmitter with Remote Seal

Ordering Information Model 266DRH Differential Pressure Transmitter with remote seal– BASE ACCURACY 0.06 % SENSOR - Span limits F 0.67 and 40 kPa6.7 and 400 mbar2.67 and 160 inH2O Use code S Diaphragm material / Fill fluid (wetted parts) S AISI 316 L ssSilicone oil(Note 1)NACE Process flanges/adapters material and connection (wetted parts) A AISI 316 L ss (Horizontal connection)1/4 – 18 NPT-f direct(Note 2)NACE Bolts/Gasket (wetted parts) 2 AISI 316 ss PTFE (Notes 2, 3) Housing material and electrical connection A Aluminium alloy (barrel version)1/2 – 14 NPT Output/Additional options 1 HART digital communication and 4 to 20 mAOptions requested by “Additional ordering code”(Note 4) Hazardous area certifications E9 IEC Explosion Proof Group II Category 1/2 G Ex d IIC T6 and Group II Category 1/2 D Ex tD A21 IP67 T85 °C (Note 5) Integral LCD L1 Digital LCD integral display Additional tag plate I2 Laser printing of tag on stainless steel plate Notes.Not wetted – Hastelloy C276™ on AISI seat for sensor code BNot available with low side diaphragm code R, 2, WSuitable for oxygen serviceNot available with Housing code G, Z, WNot available with Housing code J, K, W
