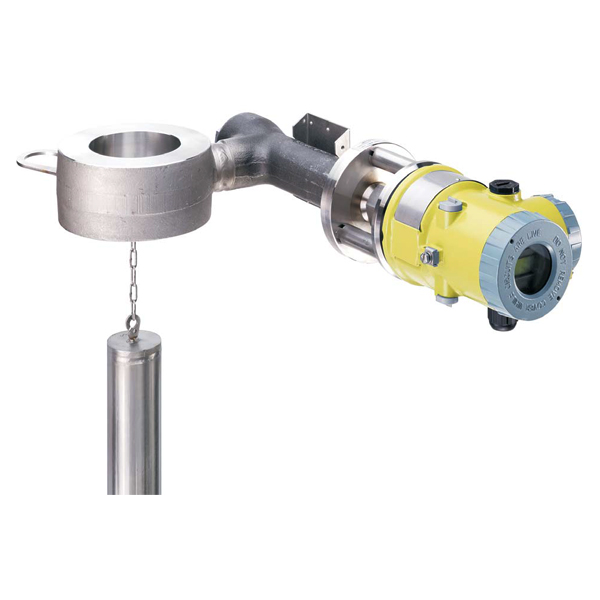

244LD-SS3R3RNNH1C4-M123 | Foxboro Intelligent Buoyancy Transmitter with Torque Tube

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -S 1.4404 equivalent to 316L / 1.4435, application from –60°C to +400°C (material is 1.4435 when Wafer Body Pressure Rating codes H1and H2 selected) Torque Tube Material (Process wetted) S 1.4404 equivalent to 316L Wafer Body Flange Size (Nominal size) 3 3-Inch Wafer Body Pressure Rating & Contact Face R3 ANSI Class 1500 RF/RF(1) Wafer Body Mounting Direction: (Amplifier to body) R Right Hand mounted Version N Base VERSION - LEVELSTAR- (244LD)(2,3) Cable Entry N 1/2-14 NPT without cable gland Communication H HART Electrical Classification 1C4 ATEXintrinsicsafe Zone1, IICT4(HART) -M External Pushbottons for Maintenance(4) Certificates -1-2-3 EN 10204-2.1 , Certificate Of ComplianceEN 10204-2.2 , Specific Test Report (Calibration)EN 10204-3.1 , Inspection Certificate Of Process Wetted Material Available with Wafer Body Flange Size 3 or 4only with Communication H (HART) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6Pending Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZNot available with Wafer Body Material codes A, K,N, I, C or Torque Tube Material codes I and M
