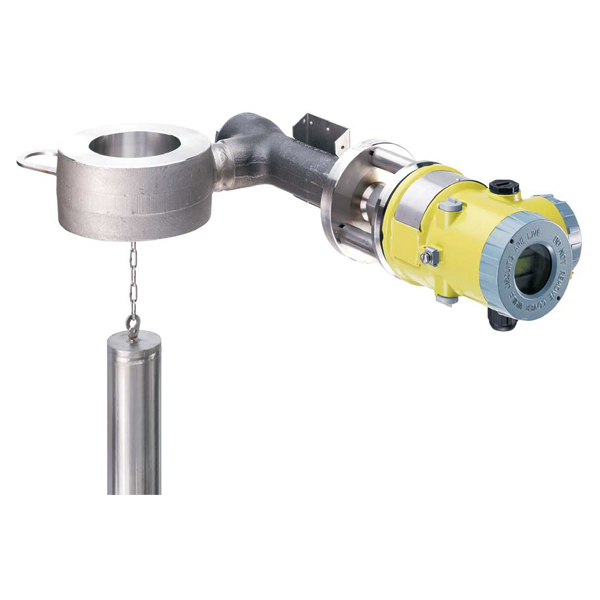

244LD-SS3R2RNMHFDZ-ML12 | Foxboro Intelligent Buoyancy Transmitter with Torque Tube

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -S 1.4404 equivalent to 316L / 1.4435, application from –60°C to +400°C (material is 1.4435 when Wafer Body Pressure Rating codes H1and H2 selected) Torque Tube Material (Process wetted) S 1.4404 (316L) Wafer Body Flange Size (Nominal size) 3 3-Inch Wafer Body Pressure Rating & Contact Face R2 ANSI Class 900 (300/600/900) RF/RF (Raised Face / Raised Face)(1) Wafer Body Mounting Direction: (Amplifier to body) R Right Hand mounted Version N Base VERSION - LEVELSTAR- (244LD)(2,3) Cable Entry M M20x1.5 without cable gland Communication H HART Electrical Classification FDZ FM Explosionproof Options -M External Pushbuttons for Maintenance(4) Tag No. Labeling L Stainless Steel Label Fixed with Wire Certificates 12 EN 10204-2.1, Certificate of ComplianceEN 10204-2.2, Specific Test Report (Calibration) Available with Wafer Body Flange Size 3 or 4.only with Communication H (HART) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6Pending Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZNot with Optionals -H and Version B, S or C.
