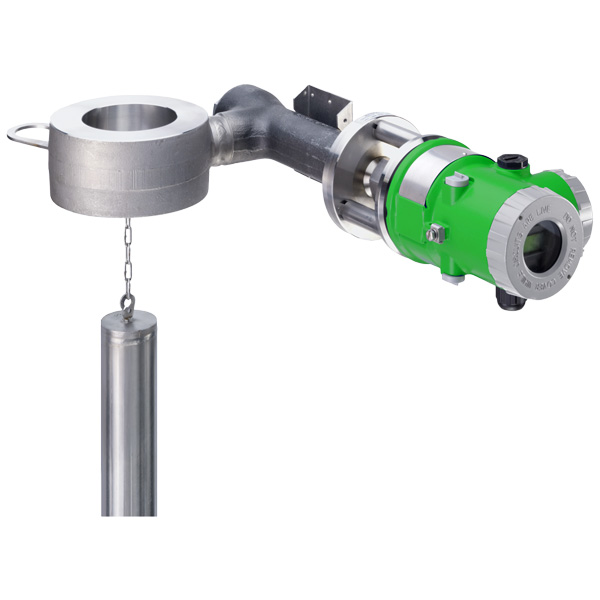

244LD-SI4R2RNNHD0C-HML1236Q | Foxboro 244LD Buoyancy Digital Level Transmitter

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -S 1.4404 (316L) or 1.4435 if Pressure Rating codes H1 and H2 are selected, application from –60°C to 400°C Torque Tube Material (Process wetted) I 2.4816 (Inconel 600) Wafer Body Flange Size (Nominal size) 4 4 inch Wafer Body Pressure Rating & Contact Face R2 ANSI Class 900 (300/600/900) RF/RF (Raised Face / Raised Face)(1) Intelligent Buoyancy Transmitter with Torque Tube R Right Hand Mounted Version N Base VERSION - LEVELSTAR- (244LD)(2)(3) Cable Entry N 1/2-14 NPT without cable gland Communication H HART® Electrical Classification D0C ATEX explosionproof Zone 0, IIC T6 Options -HM Housing Complete Stainless SteelExternal Pushbuttons for Maintenance(4) Tag No. Labeling L Stainless Steel Label Fixed with Wire Certificates 1236Q EN 10204-2.1, Certificate of ComplianceEN 10204-2.2, Specific Test Report (Calibration)EN 10204-3.1, Inspection Certificate of Process Wetted Material (for wafer body only) Comply with NACE Standard MR0175 not with Wafer Material K (Carbon Steel) and not with Torque Tube Material S (Stainless Steel)SIL 2 Certificate(5) Available with Wafer Body Flange Size 3 or 4.Only with Communication H (HART®) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6.Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZ.Not with Optionals -H and Version B, S or C.Only available with HART® Communication.
