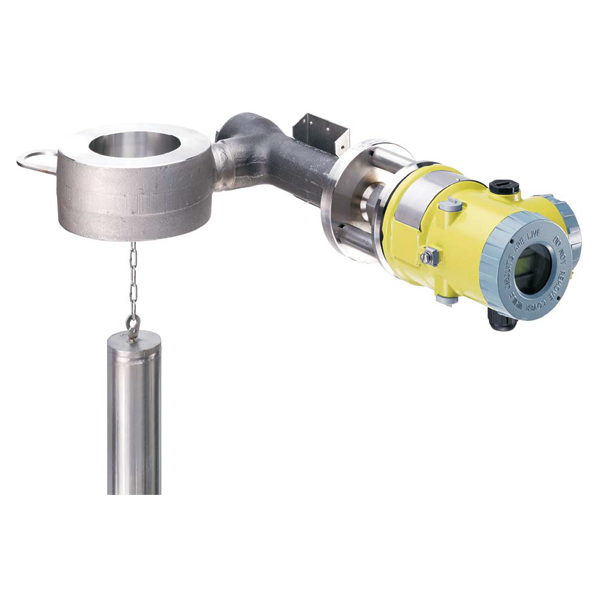

244LD-SI3S2RNMHD1C-HM2365 | Foxboro Intelligent Buoyancy Transmitter with Torque Tube

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -S 1.4404 equivalent to 316L / 1.4435, application from –60°C to +400°C (material is 1.4435 when Wafer Body Pressure Rating codes H1and H2 selected) Torque Tube Material (Process wetted) I 2.4816 (Inconel 600) Wafer Body Flange Size (Nominal size) 3 3-Inch Wafer Body Pressure Rating & Contact Face S2 ANSI Class 900 (300/600/900) SF/SF (Smooth Finish/Smooth Finish)(1) Wafer Body Mounting Direction: (Amplifier to body) R Right Hand mounted Version N Base VERSION - LEVELSTAR- (244LD)(2,3) Cable Entry M M20x1.5 without cable gland Communication H HART Electrical Classification D1C ATEX explosionproof Zone 1, IIC T6(4) Options -HM Housing Complete Stainless SteelExternal Pushbuttons for Maintenance(5) Certificates 236 EN 10204-2.2, Specific Test Report (Calibration)EN 10204-3.1, Inspection Certificate of Process Wetted Material (for wafer body only)Comply with NACE Standard MR0175 not with Wafer Material K (Carbon Steel) and not with Torque Tube Material S (Stainless Steel) Material Test 5 PMI -Test Available with Wafer Body Flange Size 3 or 4.only with Communication H (HART) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6Pending Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZNot available with Wafer Body Pressure Rating & Contact Face codes L1, J1, J2, J3, H1, H2, DD.Not with Optionals -H and Version B, S or C.
