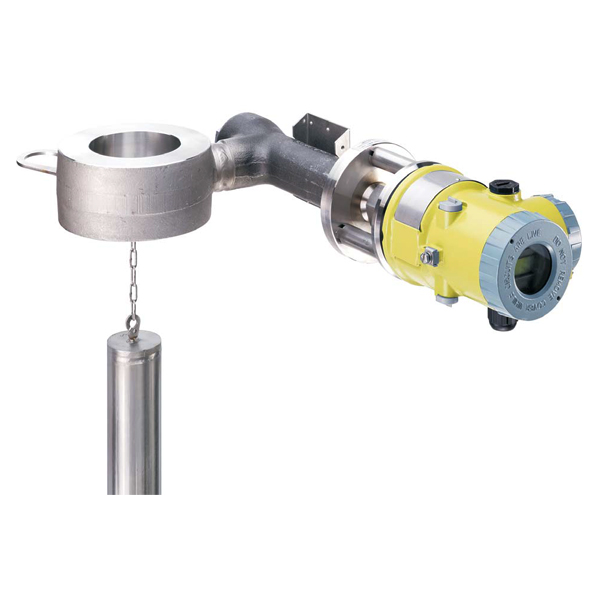

244LD-SI3R1LNNH0C6-ML123 | Foxboro Intelligent Buoyancy Transmitter with Torque Tube

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -S 1.4404 (316L) or 1.4435 if Pressure Rating codes H1 and H2 are selected, application from –60°C to 400°C Torque Tube Material (Process wetted) I 2.4816 (Inconel 600) Wafer Body Flange Size (Nominal size) 3 3 inch Wafer Body Pressure Rating & Contact Face R1 ANSI Class 150 RF/RF (Raised Face / Raised Face)(1) Intelligent Buoyancy Transmitter with Torque Tube L Right Hand Mounted with heating jacket:connecting flanges RJF, 1 inch, Class 300(2)(3)(4) Version N Base VERSION - LEVELSTAR- (244LD)(5)(6) Cable Entry N 1/2-14 NPT without cable gland Communication H HART Electrical Classification 0C6 ATEX intrinsic safe Zone 0, IIC T6 (HART® or FOUNDATION Fieldbus)(7) Options -M External Pushbuttons for Maintenance(8) Tag No. Labeling L Stainless Steel Label Fixed with Wire Certificates 123 EN 10204-2.1, Certificate of ComplianceEN 10204-2.2, Specific Test Report (Calibration)EN 10204-3.1, Inspection Certificate of Process Wetted Material (for wafer body only) Available with Wafer Body Flange Size 3 or 4.Wafer Body Flange Size code 3 available only with Wafer Body Pressure Rating code R2, S2, J2; Wafer Body Flange Size code 4 available only with Wafer Body Pressure Rating code R1, S1, J1, GT, GG.Available with Wafer Body Material codes S, U, T.Not with Pressure Rating H1 or H2. Only with Communication H (HART®) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6.Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZ.Not available with Wafer Body Pressure Rating & Contact Face codes L1, J1, J2, J3, H1, H2, DD.Not with Optionals -H and Version B, S or C.
