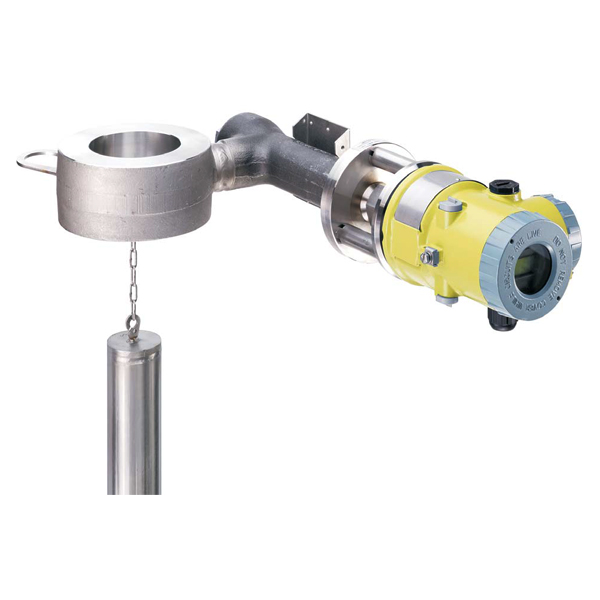

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -K 1.0460 (~A 105 Carbon Steel), application from –10°C to 350°C Torque Tube Material (Process wetted) I 2.4816 (Inconel 600) Wafer Body Flange Size (Nominal size) 3 3-Inch Wafer Body Pressure Rating & Contact Face R2 ANSI Class 900 (300/600/900) RF/RF (Raised Face / Raised Face)(1) Wafer Body Mounting Direction: (Amplifier to body) R Right Hand mounted Version N Base VERSION - LEVELSTAR- (244LD)(2,3) Cable Entry M M20x1.5 without cable gland Communication H HART Electrical Classification D1C ATEX explosionproof Zone 1, IIC T6(4) Options -M External Pushbuttons for Maintenance(5) Tag No. Labeling L Stainless Steel Label Fixed with Wire Subassemblies X Amplifier for selected code (244LD-*********-X)(6) Available with Wafer Body Flange Size 3 or 4.only with Communication H (HART) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6Pending Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZNot available with Wafer Body Pressure Rating & Contact Face codes L1, J1, J2, J3, H1, H2, DD.Not with Optionals -H and Version B, S or C.Not with (Optional feature H, R, B, V, 9, K, A, G, 2, 3, 4, 6, Q, 7, 8, 5, W, Y, or Z).
