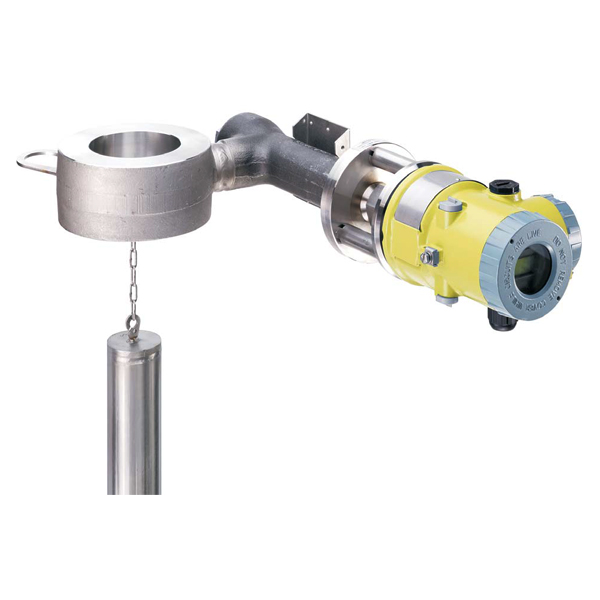

244LD-KI3R2LNMH1C4-ML23 | Foxboro Intelligent Buoyancy Transmitter with Torque Tube

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -K 1.0460 (~A 105 Carbon Steel), application from –10°C to 350°C Torque Tube Material (Process wetted) I 2.4816 (Inconel 600) Wafer Body Flange Size (Nominal size) 3 3 inch Wafer Body Pressure Rating & Contact Face R2 ANSI Class 900 (300/600/900) RF/RF (Raised Face / Raised Face)(1) Wafer Body Mounting Direction: (Amplifier to body) L Left Hand Mounted Version N Base VERSION - LEVELSTAR- (244LD)(2,3) Cable Entry M M20x1.5 without cable gland Communication H HART Electrical Classification 1C4 ATEX intrinsic safe Zone 1, IIC T4 (HART®) Options -M External Pushbuttons for Maintenance(4) Tag No. Labeling L Stainless Steel Label Fixed with Wire Certificates 23 EN 10204-2.2, Specific Test Report (Calibration)EN 10204-3.1, Inspection Certificate of Process Wetted Material (for wafer body only) Available with Wafer Body Flange Size 3 or 4.only with Communication H (HART) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6Pending Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZNot with Optionals -H and Version B, S or C.
