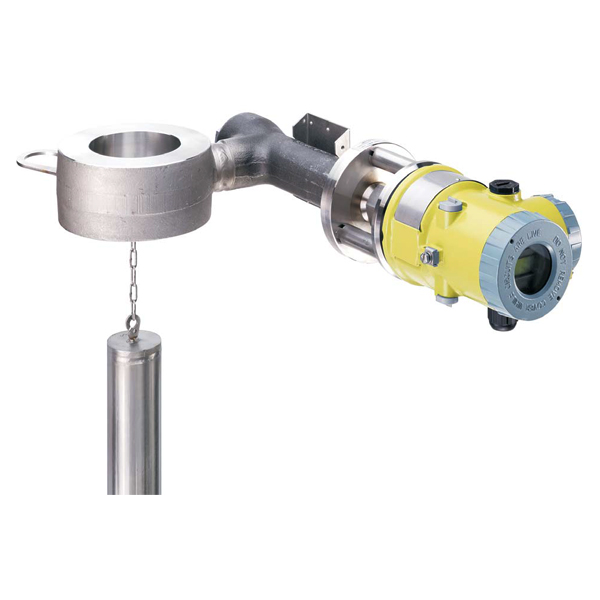

244LD-KI3R2LNMB | Foxboro® 244LD LevelStar

Part Number: 244LD-KI3R2LNMBModel: 244LD LevelStarManufacturer: FoxboroFeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering InformationModel: 244LD - Intelligent Bouyancy Transmitter with Torque TubeWafer Body Material (Process wetted): -K - Carbon Steel 1.0460 (~A 105), application from –10°C to +350°CTorque Tube Material (Process wetted): I - Inconel 600 - 2.4816Wafer Body Flange Size (Nominal size): 3 - 3-inchWafer Body Pressure Rating & Contact Face: R1 - ANSI Class 900 (300/600/900) RF/RF (1)Wafer Body Mounting Direction: L - Left Hand mountedVersion: N - Base VERSION - LEVELSTAR- (244LD) (2)(3)Cable Entry: M - M20x1.5 without cable glandCommunication: B - FOUNDATION Fieldbus H1Available with Wafer Body Flange Size 3 or 4only with Communication H (HART) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6Pending Electrical Classsification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZ
