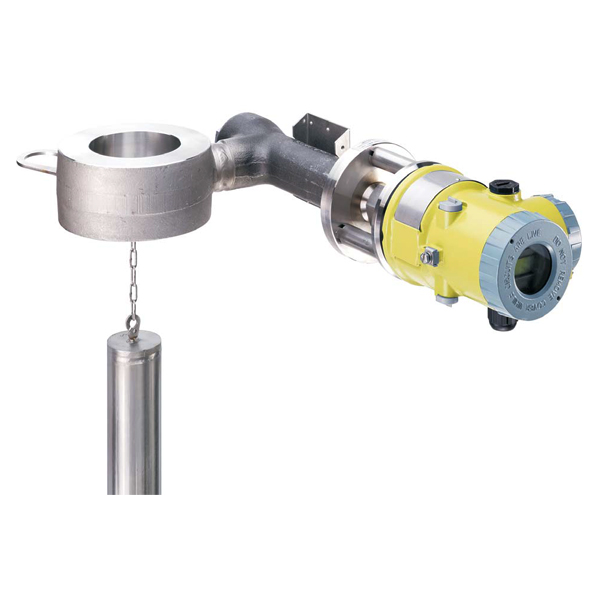

FeaturesHART Communication, 4 to 20 mAConfiguration via FDT-DTMMultilingual full text graphic LCDIR communication as a standardEasy adaptation to the measuring point without calibration at the workshopLinear or customized characteristic32 point linearisation for volumetric measurementBackdocumentation of measuring pointContinuous self-diagnostics, Status and diagnostic messagesConfigurable safety valueLocal display in %, mA or physical unitsProcess temperature from –196 °C to +500 °CMaterials for use with aggressive mediaMicro sintermetal sensor technologyOrdering Information Model 244LD Intelligent Buoyancy Transmitter with Torque Tube Wafer Body Material (Process wetted) -K 1.0460 (~A 105 Carbon Steel), application from –10°C to 350°C Torque Tube Material (Process wetted) I 2.4816 (Inconel 600) Wafer Body Flange Size (Nominal size) 3 3 inch Wafer Body Pressure Rating & Contact Face R1 ANSI Class 150 RF/RF (Raised Face / Raised Face)(1) Intelligent Buoyancy Transmitter with Torque Tube R Right Hand Mounted Version N Base VERSION - LEVELSTAR- (244LD)(2)(3) Cable Entry N 1/2-14 NPT without cable gland Communication B FOUNDATION Fieldbus H1(4) Electrical Classification 1C6 ATEX intrinsic safe Zone 1, IIC T6 (HART® or FOUNDATION Fieldbus) Options -M External Pushbuttons for Maintenance(5) Tag No. Labeling L Stainless Steel Label Fixed with Wire Subassemblies N TRANSSTAR-housing with LEVELSTAR-electronic for selected code (244LD-*********-N)(6) Available with Wafer Body Flange Size 3 or 4.Only with Communication H (HART®) and electrical Classification 0C6, 1C6, D0C, D1C, 2C6.Electrical Classification FDZ, CDZ, GA6, GDZ, NA6, NDZ, BA6, BDZ.LevelStar with Electrical Classification D1C, D0C, 1C6, 0C6, 2C6, ZZZ.Not with Optionals -H and Version B, S or C.Not with (Optional features: M, R, B, V, 9, K, A, G, 2, 3, 4, 6, Q, 7, 8, 5, W, X, Y, or Z).
