Промышленное оборудование · ITT Neo-Dyn

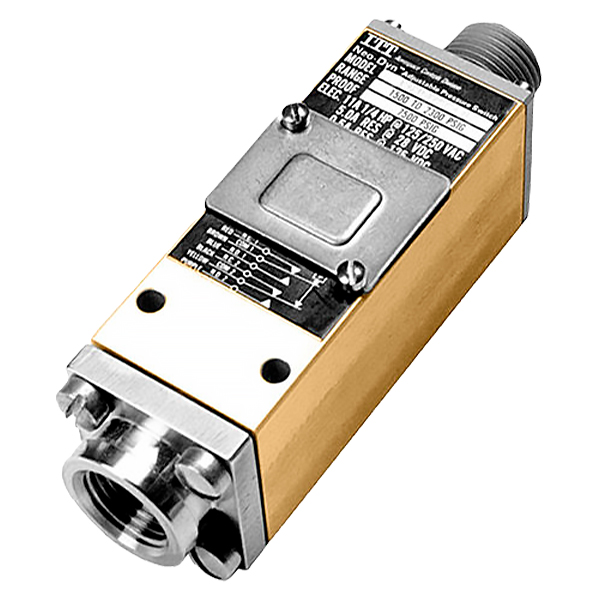

232P46C6BH | ITT Neo-Dyn Pressure Switch

Артикул: QT-63061
от 602 406 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

ConditionNew & Original in Factory Packing
Estimated Lead Time10 - 11 Weeks
Factory Warranty12 Months
ID каталога69969
ManufacturerITT Neo-Dyn
ModelPressure Switch/Internal Adjustment
Part Number232P46C6BH
Shipping Weight1 Kg
Артикул232P46C6BH
Срок поставки10 - 11 Weeks

Описание

Ordering Information Model 232P 232P Series Wetted Material 4 316 stainless steel port and piston, Buna-N O-Ring Adjustable Range 6 6000 psig dec. to 10000 psig inc. (413.7 bar dec. to 689.5 bar inc.) Electrical Form C 11 amp, 1/4 hp at 125 or 250 VAC; 5 amp resistive, 3 amp inductive at 28 VDC; .5 amp resistive at 125 VDC Enclosure 6 Includes an explosion proof, hermetically-sealed electrical assembly. EX d IIC. Division 1 and 2, Class I, Groups A, B, C, and D; Class II, Groups E, F, and G. NEMA 4X, 7, and 9; IP66. Leads are factory sealed and Pressure Switches are Dual Seal Certified. Miscellaneous BH Viton O-Ring316 stainless steel body
