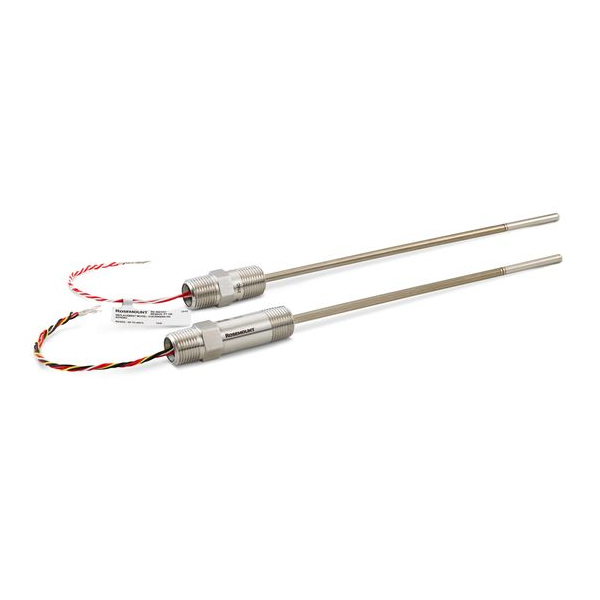

214CRHSMB1S4E0152SLE5 | Rosemount™ 214C RTD Temperature Sensor

Part Number: 214CRHSMB1S4E0152SLE5Model: 214C RTD Temperature SensorManufacturer: Rosemount™SpecificationsTemperature Range: For wire-wound element, 0.05 °C (0.020 ) maximum ice-point resistance shift after 1g vibration between 20 and 500 Hz for 150 hours according to IEC 60751:2008Lead Wires: 24 AWG wire, FEP insulated; color coded per IEC 60751Time Constant / Response: 10.8 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 60751:2008Stability: ±0.15 °C (0.059 ) maximum ice-point resistance shift following 1,000 hours at maximum specified temperature when measured per methods defined in IEC 60751:2008Insulation Resistance: 1000 MO minimum insulation resistance when measured at 500 VDC at room temperatureCalibration Options: IEC 751 Class A or B; Single point calibration; Calibration schedule or customer-specified calibration range, both with Callendar-Van Dusen constantsFeaturesSingle or dual element Pt-100 RTD with thin-film or wire-wound designs meets various application requirementsThin film sensor engineered to withstand high vibration industrial applicationsWire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperaturesCovers a wide range of temperatures from –321 to 1112°F (–196 to 600°C) for application flexibilityCallendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracyOptional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standardsAdaptable design with a variety of enclosure and connection head options meet varying application demandsIncludes spring-loaded or compact spring-loaded mounting styles for adaptabilityNorth American approvals meet hazardous location requirements
