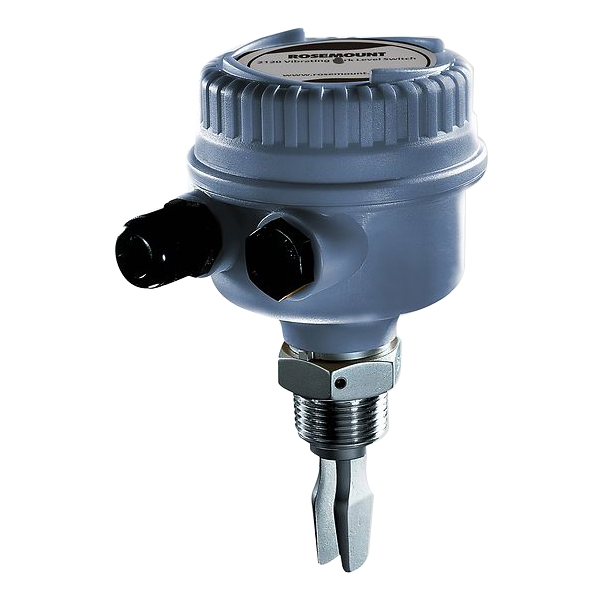

2120D5GV1E1SH0000Q4 | Rosemount 2120 Level Switch

Part Number: 2120D5GV1E1SH0000Q4SpecificationsCommunication Protocol: Direct Load, PLC/PNP, Relay, 8/16 mA, NAMURProcess Media Density: Minimum 37.5 lb/ft3 (600 kg/m3)Viscosity: 0.2 to 10000 cP (centiPoise)Operating Pressure: Full vacuum to 1450 psi (Full vacuum to 100 bar)Operating Temperature: -40 to 302 °F (-40 to 150 °C)Safety: SIL2 IEC 61508 certifiedTÜV tested and WHG approved for overfill preventionDiagnostics Electronic: self-checking and condition monitoringFeaturesMagnetic test point makes testing of the Rosemount 2120 easyCan be operated using the sun or battery as a power source with the 12Vdc optionFast drip fork design gives a quicker response time, especially with viscous liquidsAdjustable switching delay enables easy handling of turbulent and splashing applications3-A and EHEDG certificates for hygienic applications. Compliance with FDA and ASME-BPE standards
