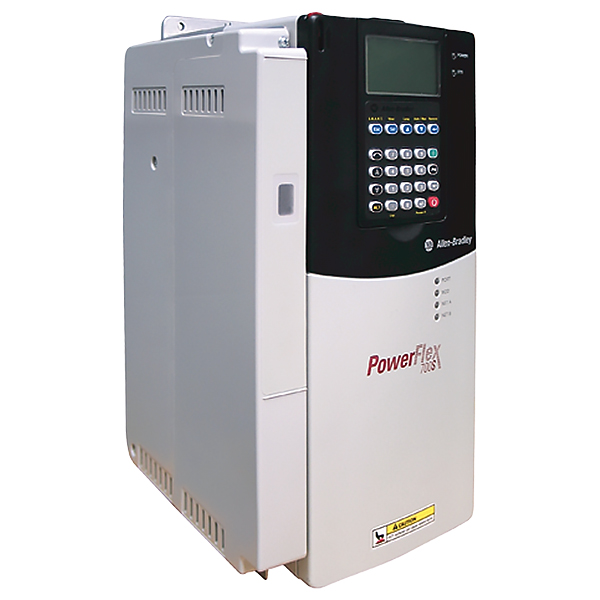

20DC2P1A0EYNANANE | Allen Bradley PowerFlex 700S AC Drive

Catalog Number Explanation Drive 20D PowerFlex 700S Voltage Rating C(1) Voltage: 400V ACPh.: (6 pulse)Precharge: - PowerFlex 700S ND Rating (480V, 60 Hz Input) 2P1 Amps: 2.1Hp: 1.0 Frame: 1 Enclosure A(2) IP20, NEMA Type 1 with Conformal Coat HIM (Human Interface Machine) 0 Blank Cover Documentation E English Manual Brake(3) Y Yes Brake Resistor N No Emission A(4) CE Filter(5): YesCM Chok: Yesdu/dt Filter: No Comm Slot N None Control Options(6) A Logix Expansion: NoSynchLink: NoCassette: Expanded Feedback N(7) Standard (Incremental Encoder) Additional Configuration E Phase II Control For DC input on Frames 1…4, use the corresponding AC input code B, C, D, or E.IP20 for Frames 1…6, IP21 for Frames 9 and greater.Brake IGBT is standard on Frames 1…3 and optional on Frames 4…9 only.Frames 1…6 only.CE Certification testing has not been performed on 600V class drives Frames 1…4.Phase II control available only.One encoder interface that is included with base drive.
