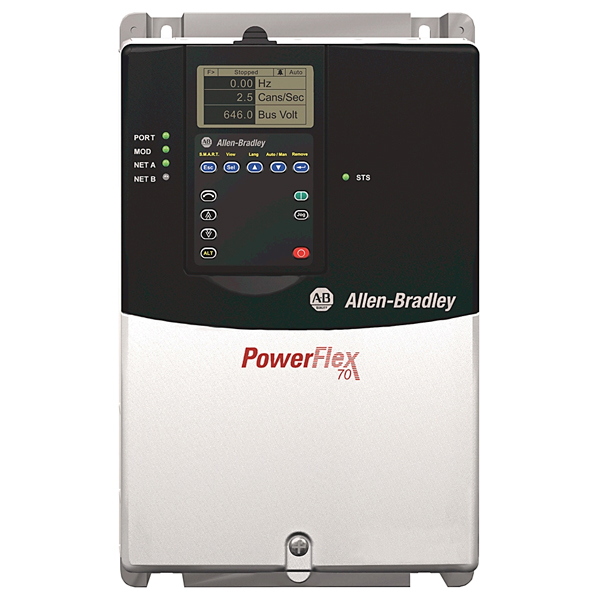

20AC030A0AYNANC0 | Allen Bradley PowerFlex 70 AC Drive
Артикул: QT-61965
от 1 039 435 ₸
В наличии: 1
Предложения складов
Склад
Цена
В тенге
Остаток
Доставка
склад-3
2 194,80 USD
1 039 435 ₸
1
30–45 дней
Характеристики
Condition
New & Original in Factory Packing
Estimated Lead Time
Usually Ships in 1 - 10 Working Days
Factory Warranty
12 Months
ID каталога
68867
Manufacturer
Allen Bradley
Model
PowerFlex 70 AC Drive
Part Number
20AC030A0AYNANC0
Shipping Weight
11 Kg
Артикул
20AC030A0AYNANC0
Описание
Catalog Number ExplanationDrive20APowerFlex 70Voltage RatingCVoltage: 400V ACPh.: 3 (6 pulse)PowerFlex 70 ND Rating (400V, 50 Hz Input)030Amps: 30kW: 15Hp: 20Frame: DEnclosure(1)A(2)Panel Mount - IP 20, NEMA/UL Type 1HIM0Blank CoverDocumentationAManualBrake IGBTYYesInternal Brake ResistorNNoEmission Class(3)AFilteredComm SlotNNoneControl and I/OCControl: EnhancedSafe Torque Off(4)(5): NoneFeedback(6)0No Feedback - Enhanced ControlAll enclosures come with conformal coating standard.IP20 and IP66 frame E drives are manufactured with a flange-like heat heatsink with mounting holes.For additional information, see the following table.Safe Torque Off is not available user-installed for 600V drives.Drive is not CE EMC/TUV certified when the encoder interface option is installed.Drive is not CE EMC certified when the encoder interface option is installed or functionally safety certified when safe torque off option is installed.
