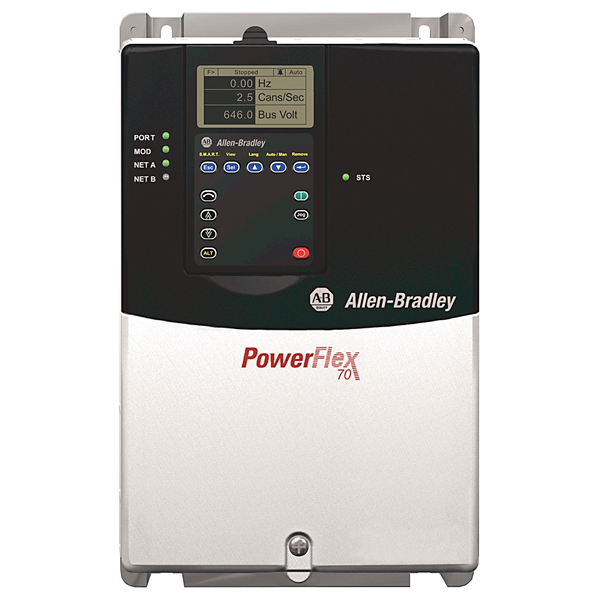

20AC022A0AYNANC0 | Allen Bradley PowerFlex 70 AC Drive

Catalog Number Explanation Drive 20A PowerFlex 70 Voltage Rating C Voltage: 400V ACPh.: 3 (6 pulse) PowerFlex 70 ND Rating (400V, 50 Hz Input) 022 Amps: 25.3kW: 5.5Hp: 7.5Frame: D Enclosure(1) A(2) Panel Mount - IP 20, NEMA/UL Type 1 HIM 0 Blank Cover Documentation A Manual Brake IGBT Y Yes Internal Brake Resistor N No Emission Class(3) A Filtered Comm Slot N None Control and I/O C Control: EnhancedSafe Torque Off(4)(5): None Feedback(6) 0 No Feedback - Enhanced Control All enclosures come with conformal coating standard.IP20 and IP66 frame E drives are manufactured with a flange-like heat heatsink with mounting holes.For additional information, see the following table.Safe Torque Off is not available user-installed for 600V drives.Drive is not CE EMC/TUV certified when the encoder interface option is installed.Drive is not CE EMC certified when the encoder interface option is installed or functionally safety certified when safe torque off option is installed.
