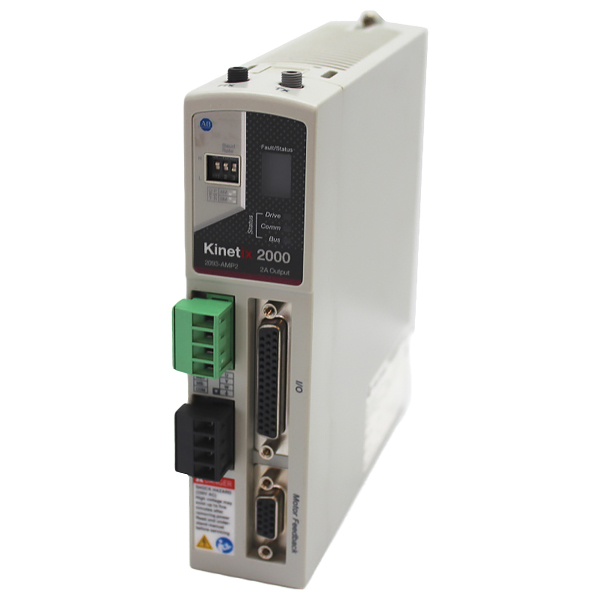

2093-AMP2 | Allen Bradley Kinetix 2000 Axis Module - Discontinued - Out of Stock

Specifications Bandwidth¹ Velocity Loop: 500 HzCurrent Loop: 860Hz PWM frequency 8 kHz Nominal input voltage 325V dc Continuous current (rms) 2.0 A Continuous current (0-pk) 2.83 A Peak current (rms) 6.0 A Peak current (0-pk) 8.48 A Peak output current time (max) 3 s from 0% drive utilization (0% soak) Continuous power out (nom) 0.6 kW Efficiency 98% Capacitance 200 µF Capacitive energy absorption 7.5 J Inverter PCB leakage current 1 mA Bandwidth values vary based on tuning parameters and mechanical components. Discontinued - Out of Stock
