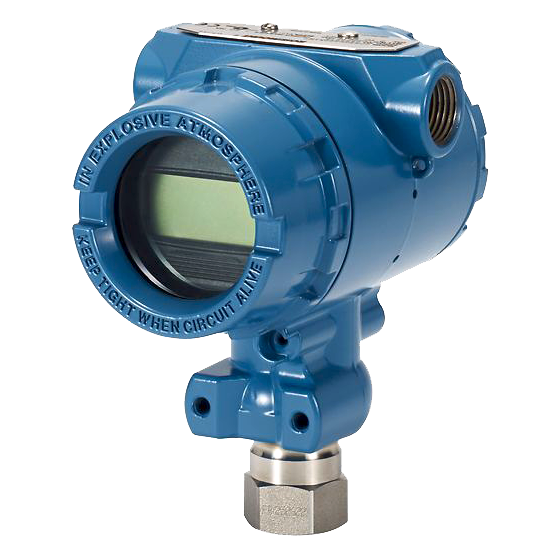

2088G3S22A2M5I1 | Rosemount 2088 Gage Pressure Transmitter

Part Number: 2088G3S22A2M5I1Model: 2088 Gage Pressure TransmitterManufacturer: RosemountOrdering InformationModel: 2088 - Pressure TransmitterMeasurement Type: G - GagePressure ranges: 3 - -14.7 to 800 psi (-1,01 to 55,2 bar)Transmitter output¹: S - 4?20 mA dc/Digital HART ProtocolMaterials of construction²: 22 - [Process connection] 316L SST[Isolating diaphragm] 316L SST[Fill Fluid] SiliconeProcess connection: A - 1/2?14 NPT femaleConduit entry: 2³ - M20 x 1.5Display and interface: M5 - LCD display, configured for engineering unitsProduct certifications: I1³ - ATEX Intrinsic SafetyHART Revision 5 is the default HART output. The Rosemount2088 with selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Materials of construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Not available with Low Power transmitter output code N.
