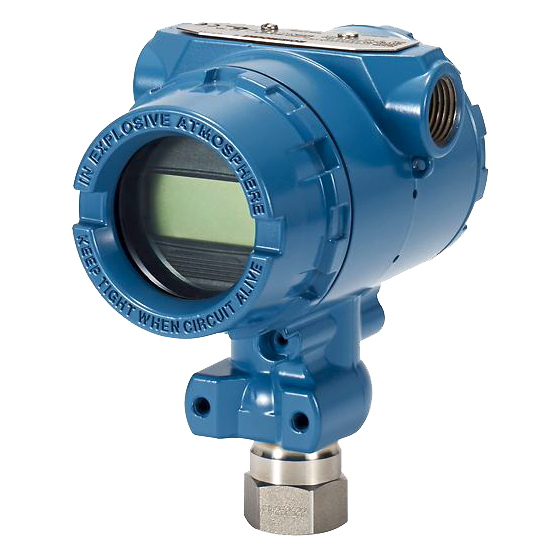

2088G3S22A1M5B4E5Q4S5 | Rosemount 2088 Gage Pressure Transmitter

Part Number: 2088G3S22A1M5B4E5Q4S5Model: 2088 Gage Pressure TransmitterManufacturer: RosemountOrdering InformationModel: 2088 - Pressure TransmitterMeasurement Type: G - GagePressure ranges: 3 - -14.7 to 800 psi (-1,01 to 55,2 bar)Transmitter output¹: S - 4?20 mA dc/Digital HART ProtocolMaterials of construction²: 22 - [Process connection] 316L SST[Isolating diaphragm] 316L SST[Fill Fluid] SiliconeProcess connection: A - 1/2?14 NPT femaleConduit entry: 1 - 1/2?14 NPTDisplay and interface: M5 - LCD display, configured for engineering unitsMounting brackets: B4 - SST mounting bracket with SST boltsProduct certifications: E5 - USA Explosionproof (XP) and Dust-Ignitionproof (DIP)Calibration certificate: Q4 - Calibration certificateManifold assemblies: S5³ - Assemble to Rosemount 306 Integral ManifoldHART Revision 5 is the default HART output. The Rosemount2088 with selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Materials of construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Use 1/2-14 NPT female process connection code A."Assemble-to" items are specified separately and require a completed model number.
