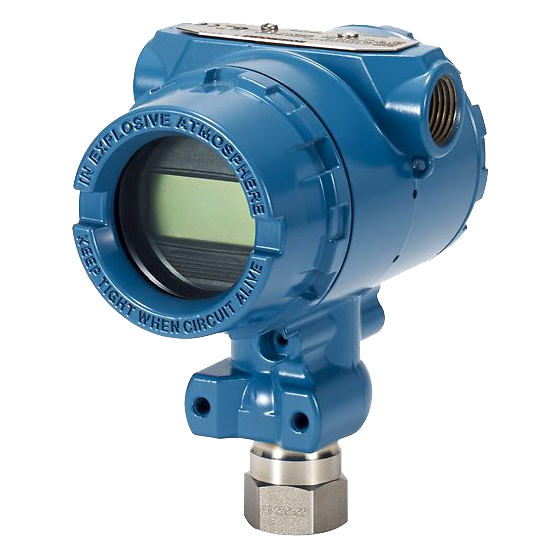

SpecificationsRangedown: Up to 50:1Communication Protocol: 4-20 mA HART®, 1-5 V Low Power HART®Measurement Range: Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276Diagnostics: Basic DiagnosticsCertifications/Approvals: NSF, NACE®, hazardous location, see full specs for complete list of certificationsFeaturesLocal Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-useFactory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-upAvailable protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibilityLightweight, compact design allows for easy installationOrdering InformationModel2088Pressure TransmitterMeasurement typeGGaugePressure range3–14.7 to 800 psi (–1.01 to 55.2 bar)Transmitter outputS4–20 mA dc/Digital HART ProtocolMaterials of construction22 Process connection: 316L SSTIsolating diaphragm: 316L SSTFill fluid: SiliconeProcess connectionA1/2–14 NPT female Conduit entry11/2–14 NPTMounting bracketsB4SST mounting bracket with SST bolts Product certifications E5USA Explosion-proof (XP) and Dust-Ignitionproof (DIP) HART revision configurationHR7(1)Configured for HART Revision 7 Configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 if needed.
