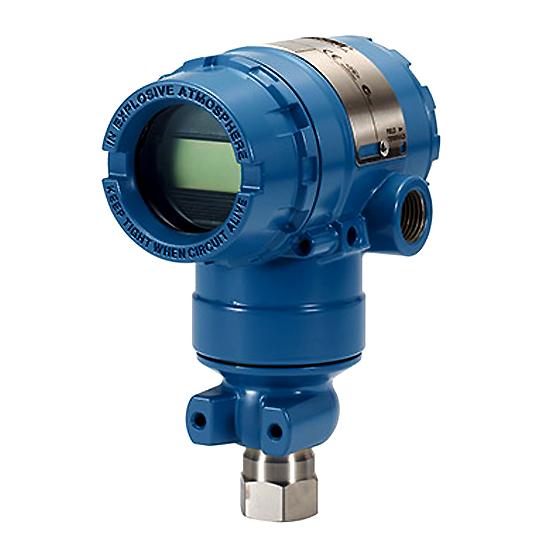

Rosemount 2051 In-Line Pressure Transmitter with Integral Manifold

Ordering InformationModel2051TIn-line Pressure TransmitterTransmitter typeGGagePressure range4–14.7 to 4000 psi (–1,0 to 276 bar)Transmitter outputA(1)4–20 mA with Digital Signal Based on HART ProtocolProcess connection style 2B1/2–14 NPT female2(2)Isolating diaphragm: 316L SSTProcess connection wetted parts material: 316L SSTSensor fill fluid1SiliconeJHousing material: SSTConduit entry size: 1/2–14 NPTManifold assemblies(3)S5Assemble to Rosemount 306 Integral Manifold Mounting bracketB4Bracket for 2-in. pipe or panel mounting, All SSTProduct certifications(4)E2INMETRO FlameproofDisplay and interface optionsM5LCD displayCalibration certificationQ4Calibration certificateMaterial traceability certificationQ8Material traceability certification per EN 10204 3.1HART Revision 5 is the default HART output. The Rosemount 2051 with Selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate. “Assemble-to” items are specified separately and require a completed model number.Not available with low power output code M. Ordering Information In-Line Manifold Model 0306 In-line manifold Manufacturer R Rosemount Manifold style T Threaded Manifold type 2 Two-valve Material of construction 2 Body: 316/316L SSTBonnet: 316 SST Stem and tip/ball: 316 SST Process connection BA ½–14 female NPT process connection for in-line transmitter Packing material 1(1) PTFE Valve seat 1 Integral Includes PTFE tape on drain/vent valves and plugs.
