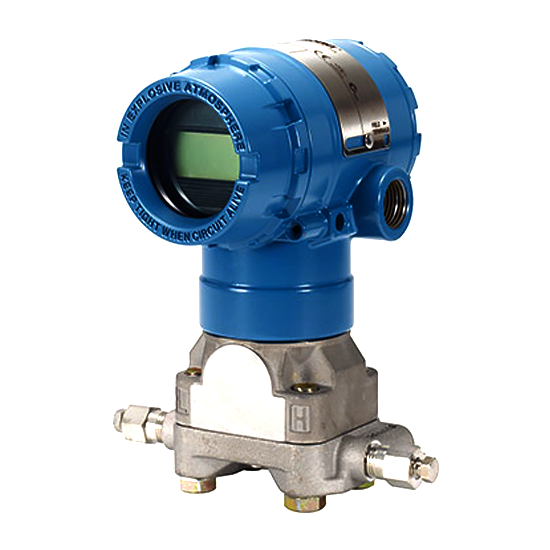

2051CD4A22A1KB4M5D4HR7
Дифференциальный давление, 4–300 psi (−20.7–20.7 bar)
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Factory Warranty | 12 Months |
| ID каталога | 103839 |
| Manufacturer | Rosemount |
| Model | 2051CD Differential Pressure Transmitter |
| Part Number | 2051CD4A22A1KB4M5D4HR7 |
| Shipping Weight | 6 Kg |
| Артикул | 2051CD4A22A1KB4M5D4HR7 |
| Вывод | 4–20 mA с цифровым сигналом, основанном на HART® протоколе |
| Диагностика | Новый и оригинальный в заводской упаковке |
| Материалы | СST, ПТФЕ, СИЛИКОНОВЫЙ КАБЛЕЛЬ |
| Размер диапазона | 4–300 psi (−20.7–20.7 bar) |
| Тип | Дифференциальный давление |
Описание
Ordering Information Model 2051C Coplanar Pressure Transmitter Measurement type D Differential Pressure range 4 –300 to 300 psi (–20.7 to 20.7 bar) Transmitter output(1) A 4–20 mA with digital signal based on HART® Protocol Materials of construction 2 Process flange type: CoplanarFlange material: SSTDrain/vent: SST Isolating diaphragm 2316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1Silicone Housing material K SSTConduit entry size: M20 x 1.5 Mounting brackets B4Coplanar flange bracket for 2-in. pipe or panel mounting, all SST Display and interface options M5 LCD display Hardware adjustments D4(2)Zero and span configuration buttons HART revision configuration HR7(3) Configured for HART Revision 7 HART Revision 5 is the default HART output. The Rosemount 2051 with Selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Only available with 4-20 mA HART® (output code A).Configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 if needed.
