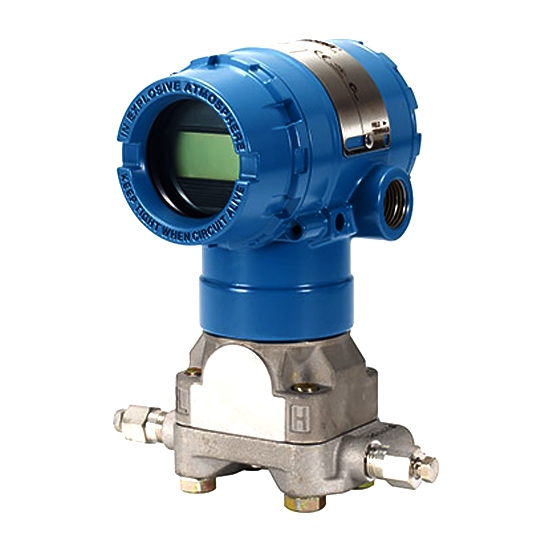

2051CD3A23A1AB4I5M5 | Rosemount 2051C Coplanar Pressure Transmitter

Part Number: 2051CD3A23A1AB4I5M5Ordering InformationModel: 2051C - Coplanar Pressure TransmitterMeasurement type: D - DifferentialPressure range: 3 - ?1000 to 1000 inH2O (?2,5 to 2,5 bar)Transmitter output: A¹ - 4?20 mA with digital signal based on HART ProtocolMaterials of construction: 2 - [Process flange type] Coplanar; [Flange material] SST; [Drain/vent] SSTIsolating diaphragm: 3² - Alloy C-276O-ring: A - Glass-filled PTFESensor fill fluid: 1 - SiliconeHousing material: A - Aluminum; [Conduit entry size] 1/2?14 NPTMounting brackets: B4 - Coplanar flange bracket for 2-in. pipe or panel mounting, all SSTProduct certifications: I5 - USA Intrinsically Safe, Division 2Display and interface options: M5 - LCD displayNOTE:HART Revision 5 is the default HART output. The Rosemount 2051 with Selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate.
