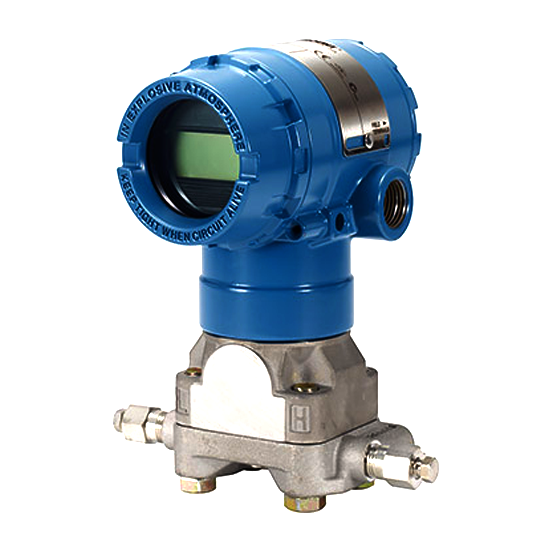

2051CD2A22A1BS2M4DZQ4HR5 + 1199DDC56DFFWJGDP00E

Ordering Information Model 2051C Coplanar Pressure Transmitter Measurement type D Differential Pressure range 2 –250 to 250 inH2O (–623 to 623 mbar) Transmitter output(1) A 4–20 mA with digital signal based on HART® Protocol Materials of construction 2 Process flange type: CoplanarFlange material: SSTDrain/vent: SST Isolating diaphragm 2316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1Silicone Housing material B AluminumConduit entry size: M20 x 1.5 Seal assemblies S2(2)Assemble to two Rosemount 1199 seals Display and interface options M4(3) LCD display with LOI Hardware adjustments DZ(4)Zero and span configuration buttons Calibration certificate Q4 Calibration Certificate HART revision configuration HR5(5)Configured for HART Revision 5 HART Revision 5 is the default HART output. The Rosemount 2051 with Selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Not valid for option codes DF and D9 for adapters. Not available with FOUNDATION™ Fieldbus (output code F) or wireless (output code X). Only available with 4-20 mA HART® (output code A).Configures the HART output to HART Revision 5. The device can be field configured to HART Revision 7 if needed. System Seal Ordering Number Model 1199 Seal systems Connection type, seal type and location D Connection type: Welded-repairable Seal system: Two seal systemSeal location: Balanced system - identical high and low sides Seal fill fluid D Fill fluid: Silicone 200Specific gravity at 77 °F (25 °C): 0.934Remote mount with capillary temperature limits(1)(2): –49 to 401 °F (–45 to 205 °C) Seal connection type/capillary ID C 0.04-in. (1.092 mm) ID Capillary length 56 9.8 ft. (3.0 m) Industry standards D EN 1092-1 (European standard) Process connection style FFW Flush flanged seal Process connection size J ASME B16.5: N/A EN 1092-1/GOST 33259-15: DN 80JIS B2238: N/A Flange/pressure rating G ASME B16.5: N/A EN 1092-1/GOST 33259-15: PN 40JIS B2238: N/A Diaphragm and wetted, upper housing, flange material DP Diaphragm and wetted: Nickel 201, seam weldedUpper housing: 316L SSTFlange: 316 SST Flushing connection ring material (lower housing) 0 None Flushing connections (connection size) 0 None Alternate design E One-piece design At ambient pressure of 14.7 psia (1 bar-a) and ambient temperature of 70 °F (21 °C).Due to heat transfer to the transmitter, the maximum ambient temperature will be de-rated if the process temperature exceed 185 °F (85 °C). Consult application specialist.
