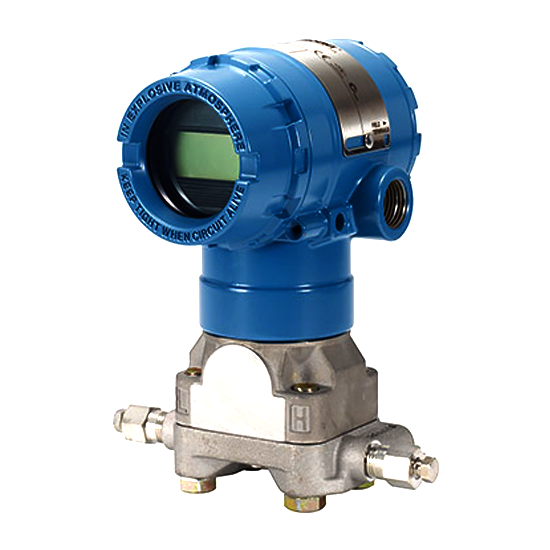

2051CD2A02A1AH3E1D4Q4 | Rosemount 2051C Coplanar Pressure Transmitter

Part Number: 2051CD2A02A1AH3E1D4Q4Ordering InformationModel: 2051C - Coplanar Pressure TransmitterMeasurement type: D - DifferentialPressure range: 2 - ?250 to 250 inH2O (?623 to 623 mbar)Transmitter output: A¹ - 4?20 mA with digital signal based on HART ProtocolMaterials of construction: 0 - [Process flange type] Coplanar; [Flange material] SST; [Drain/vent] SSTIsolating diaphragm: 2² - 316L SSTO-ring: A - Glass-filled PTFESensor fill fluid: 1 - SiliconeHousing material: A - Aluminum; [Conduit entry size] 1/2-14 NPTAlternate flange³: H3² - Traditional flange, Cast C-276, Alloy C-276 drain/ventProduct certifications: E14 - ATEX FlameproofHardware adjustments: D45 - Zero and span configuration buttonsCalibration certification: Q4 - Calibration certificateNOTE:HART Revision 5 is the default HART output. The Rosemount 2051 with Selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate.Configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 if needed. 9. Requires 0 code in Materials of Construction for alternate process connection.Not available with low power output code M.Only Available with HART 4?20 mA (output codes A and M).
