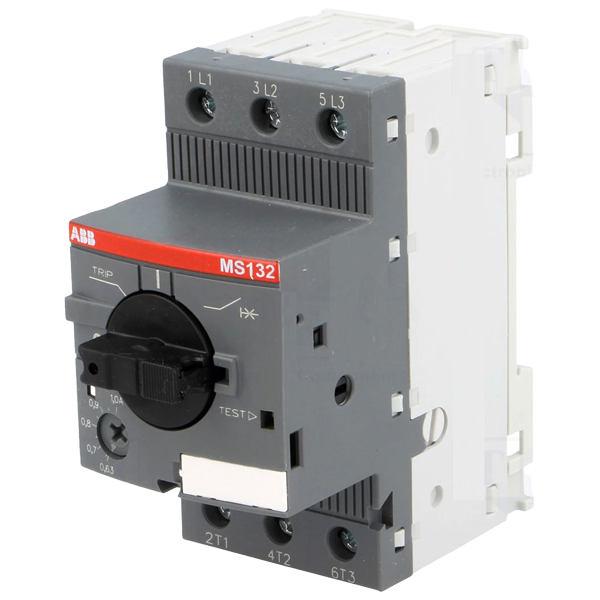

1SAM350000R1010 | ABB MS132-10 Manual Motor Starter
Мануалный мотор-размыкающий устройство (мотор-защита, или ручной мотор-охранник) — компактное устройство шириной 45 мм с номинальным рабочим током Ie = 10.0 А. Используется для вручную включать и отключать моторы, а также обеспечивать надежную защиту от короткого замыкания, перегрузки и сбоев фазы. Устройство предлагает интегрированный размыкающий функционал, температурное компенсирование, непрерывный механизм и ручной рычаг с четкой позицией включения/отключения. Подходит для трёх- и однофазных применений. Рычаг защищён от несанкционированных изменений. Дополнительно доступны разъёмы, сигнальные контакты, недостаточное напряжение, шунтовые срабатывания, 3-фазные бусбары, блоки питания и терминалные расширители.
Предложения складов
| Склад | Цена | В тенге | Остаток | Доставка |
|---|
Характеристики
| Condition | New & Original in Factory Packing |
|---|---|
| Estimated Lead Time | 4 - 6 Weeks |
| Factory Warranty | 12 Months |
| ID каталога | 98476 |
| Manufacturer | ABB |
| Model | MS132-10 Manual Motor Starter |
| Part Number | 1SAM350000R1010 |
| Shipping Weight | 2 Kg |
| Артикул | 1SAM350000R1010 |
Описание
The MS132-10 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.
