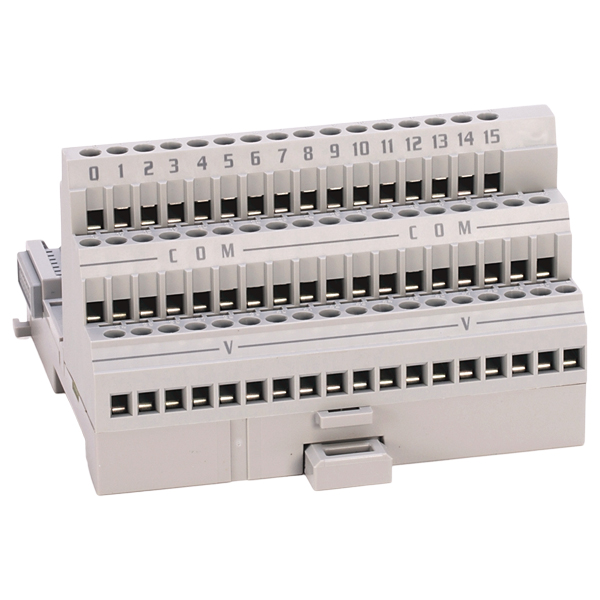

Model1794-TB3Terminal screw torque0.56...0.79 Nm (5...7 lb-in)Supply voltage range (max) FLEXBUS: 5V DC, 640 mAI/O Terminals: 2A maxV/COM Terminals: 125V DC/AC, 50/60Hz, 10AATTENTIONA disconnecting switch does not shut off the current. Make or break a circuit only under no-load conditions.Isolation VoltageCapable of 125V (continuous) maximum, Basic Insulation Type, Field Wiring Terminals to FLEXBUS, or the lesser of the installed module.Voltage ratingSee Working Voltage and Isolation Voltage Ratings for nominal valuesEnclosure type ratingNone (open-style)Wire size0.34... 3.3 mm? (22 12 AWG) solid or stranded copper wire rated at 75°C (167°F) or greater, 1.2 mm (3/64 in.) insulation max. Strip Length: 5-6 mm (0.20...0.24 in.)Wiring category¹Established by installed moduleNorth American temp codeT4AIEC temp codeT4Dimensions, approx.94 x 94 x 69 mm (HxWxD) (3.7 x 3.7 x 2.7 in.) (with module installed in terminal base)Use this Conductor Category information for planning conductor routing.
