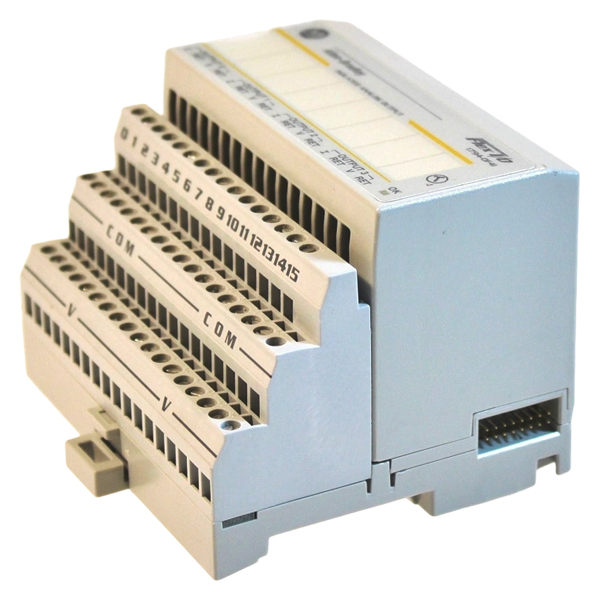

1794-OF4I | Allen Bradley FLEX 4 Point Analog Output Module

Model1794-OF4INumber of outputs4 isolatedModule location1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBNFlexBus voltage5V DCFlexBus current50 mAExternal DC power supply, nom voltage range24V DC19.2 ... 31.2V DC (includes 5% AC ripple)External DC power supply current210 mA @ 24V DCThermal dissipation, max16 BTU/hr @ 31.2V DCPower dissipation, max4.7 W @ 31.2V DCIsolation voltage120V (continuous), Basic Insulation Type, channel to channel, channel to user, channel to system, and user power to system when used with 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, or 1794-TB3TS.250V (continuous), Basic Insulation Type, channel to channel, channel to user, channel to system, and user power to system when used with 1794-TBN.Type tested at 1000V AC for 60s.Data format2 s complement2 s complement %BinaryOffset binaryIndicators1 red/green power/status indicatorKeyswitch position4Dimensions, with module installed in base; HxWxD94.0 x 94.0 x 66.0 mm(3.7 x 3.7 x 2.6 in.)Conductor category¹2 on signal ports2 on power portsConductor wire sizeDetermined by installed terminal baseWire typeShielded on signal portsNorth American temp codeT4AIEC temp codeT4Use this Conductor Category information for planning conductor routing.
