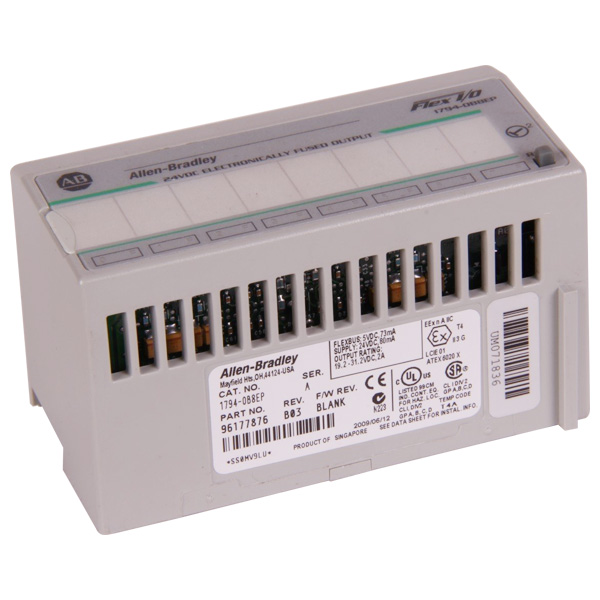

1794-OB8EP | Allen Bradley FLEX 8 Point Digital Output Module

Model1794-OB8EPNumber of outputs8, current, sourcingRecommended terminal base unit1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN, 1794-TB3K, 1794-TB3SK, 1794-TBNKOn-state voltage, min19.2V DCOn-state voltage, output nom24V DCOn-state voltage, output max31.2V DCOutput current rating2.0 A max per output10.0 A max per module (8 outputs @ 1.25 A, 5 outputs @ 2.0 A, or similar combinations totaling 10.0 A or less)On-state current, output, min1.0 mA per channelOn-state current, output, max2.0 A per channelOn-state voltage drop, max0.2V DCSurge current4 A for 50 ms, repeatable every 3 secondsOff-state leakage current, max0.5 mAIsolation voltage50V (continuous), Basic Insulation TypeTested at 850V DC for 1 s, between field side and systemNo isolation between individual channelsOutput signal delay¹ Off to On On to Off0.1 ms0.1 msFlexBus current73 mA @ 5V DCPower dissipation, max5.5 W @ 31.2V DCThermal dissipation, max18.8 BTU/hr @ 31.2V DCFusingOutputs are electronically fusedDelay time is the time from the receipt of an output on or off command to the output actually turning on or off.
