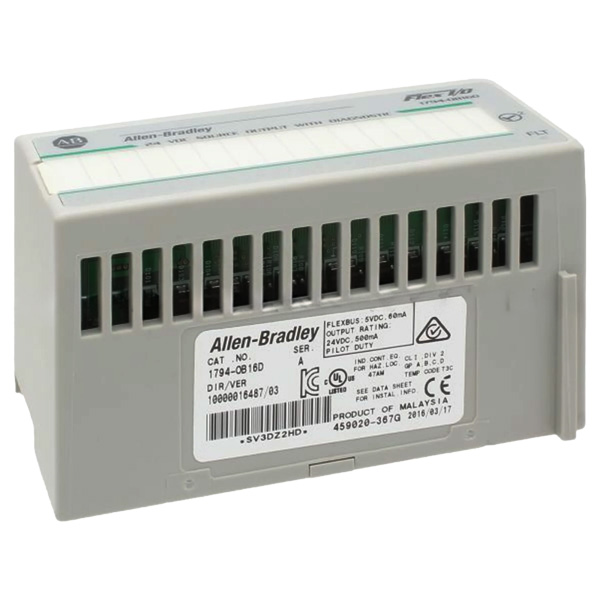

1794-OB16D | Allen Bradley FLEX Digital DC Output Module

Part Number : 1794-OB16DModel: FLEX Digital DC Output ModuleManufacturer: Allen BradleyModel1794-OB16D Number of outputs16, nonisolatedRecommended terminal base unit 1794-TB2, 1794-TB3, 1794-TB3SOn-state voltage, output min10V DCOn-state voltage, output nom24V DC On-state voltage, output max31.2V DC Output current rating8.0 A (16 outputs @ 0.5 A)On-state current, output, min1.0 mA per channelOn-state current, output, max500 mA per channelOn-state voltage drop, max0.5V DCSurge current2 A for 50 ms, repeatable every; 2 secondsOff-state leakage current, max0.5 mAIsolation voltage50V (continuous), Basic Insulation TypeTested at 850V DC for 1 s between user and systemNo isolation between individual channelsOutput signal delay¹ Off to On On to Off0.5 ms0.5 msFlexBus current60 mA @ 5V DCPower dissipation, max4.8 W @ 31.2V DCThermal dissipation, max16.4 BTU/hr @ 31.2V DCShort circuit protect and detectionThermal shutdown (auto reset) Detection condition: when.external power active, output signal active, and output portvoltage less than 2V.Open wire detect off-state leakage current0.1 mA When external power active and output signal inactive.Detect reverse polarity voltageMinimum 10V: Module must detect if the reverse polarityexternal power supply voltage is greater than the value.Delay time is the time from the receipt of an output on or off command to the output actually turning on or off.
