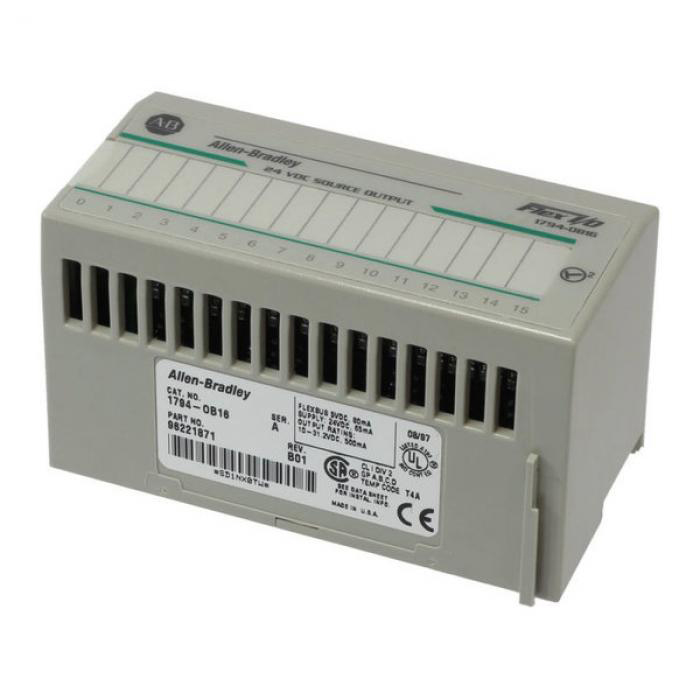

1794-OB16 | Allen Bradley FLEX Digital DC Output Module

Part Number : 1794-OB16P Model1794-OB16P Number of outputs16, current, sourcingRecommended terminal base unit 1794-TB2,1794-TB3,1794-TB3S, 1794-TB3K, 1794-TB3SKOn-state voltage, output min10V DCOn-state voltage, output nom24V DC On-state voltage, output max31.2V DC (see Derating Curve for 1794-OB16P)Output current rating8.0 A (16 outputs @ 0.5 A)On-state current, output, min1.0 mA per channelOn-state current, output, max500 mA per channelOn-state voltage drop, max0.5V DCSurge current2 A for 50 ms, repeatable every; 2 secondsOff-state leakage current, max0.5 mAIsolation voltage50V (continuous), Basic Insulation TypeTested at 850V DC for 1 s between user and systemNo isolation between individual channelsOutput signal delay? Off to On On to Off0.5 ms1.0 msFlexBus current80 mA @ 5V DCPower dissipation, max5.3 W @ 31.2V DCThermal dissipation, max18.1 BTU/hr @ 31.2V DCFusingModule outputs are not fused.Fusing is recommended. If fusing desired, you must provide external fusing.Use SAN-0 MQ4-800mA fuses.(1) Delay time is the time from the receipt of an output on or off command to the output actually turning on or off.
