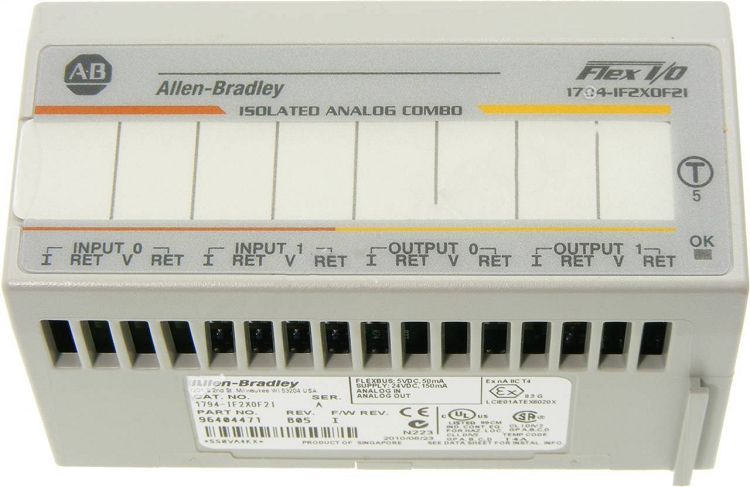

1794-IF2XOF2I | Allen Bradley FLEX Analog Combination I/O Module

Model1794-IF2XOF2I Module location1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, or 1794-TBN terminal baseFlexBus voltage 5V DCFlexBus current50 mAExternal DC power supply, nom voltage range24V DC19.2...31.2V DC (includes 5% AC ripple)External DC power supply current100 mA @ 24V DCThermal dissipation, max11.3 BTU/hr @ 31.2V DCPower dissipation, max3.3 W @ 31.2V DCIsolation voltage120V (continuous), Basic Insulation Type, channel to channel, channel to user,channel to system, and user power to system when used with 1794-TB2,1794-TB3, 1794-TB3S, 1794-TB3T, or 1794-TB3TS.250V (continuous), Basic Insulation Type, channel to channel, channel to user,channel to system, and user power to system when used with 1794-TBN.Type tested at 1000V AC for 60 s.Indicators1 red/green power/status indicatorKeyswitch position5Dimensions, with module installed in base; HxWxD94.0 x 94.0 x 66.0 mm (3.7 x 3.7 x 2.6 in.)CalibrationFactory-calibrated for 150 Hz, 300 Hz, and 600 Hz. Can be recalibrated when necessary.Conductor category?2 on signal ports2 on power portsConductor wire sizeDetermined by installed terminal baseWire typeShielded on signal portsNorth American temp codeT4AIEC temp codeT4Use this conductor category information for planning conductor routing.
