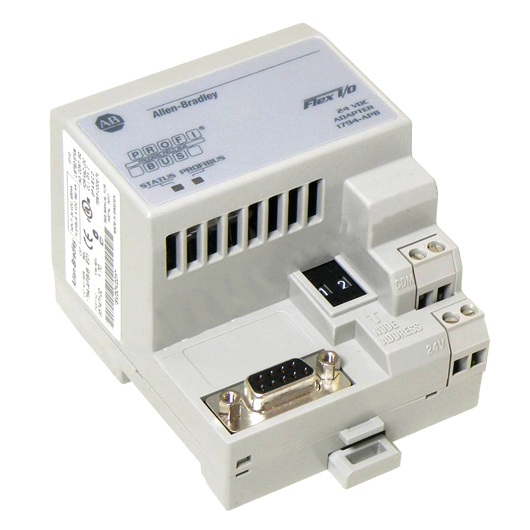

1794-APB | Allen Bradley 1794 Flex I/O Adapter Module | 1794 PROFIBUS Adapter Module

Part Number : 1792-APBModel1794-APBInput Voltage Rating24V dc nominal19.2V to 31.2 V dc (includes 5% ac ripple)Input Current450 mA maximum, 330 mA at 24V dcInrush Current23 A for 2 msCommunication RateAll rates up to 12.0 Mbits/sIndicatorsStatus- red/greenPROFIBUS- red/greenFlexbus Output Current640 mA maximumIsolation VoltageTested at 850V dc for 1s between user power and flexbusPower Dissipation7.68 W maximum @ 19.2V dcThermal DissipationMaximum 26 BTU/hr @ 19.2V dcDimensions3.4H x 2.7W x 2.7D inches87H x 69W x 69D mmEnvironmental Conditions Operating TemperatureIEC 60068-2-1 (Test Ad, Operating Cold),IEC 60068-2-2 (Test Bd, Operating Dry Heat),IEC 60068-2-14 (Test Nb, Operating Thermal Shock):0 to 55 ?C (32 to 131 ?F) Storage TemperatureIEC 60068-2-1 (Test Ab, Un-packaged Non-operating Cold),IEC 60068-2-2 (Test Bb, Un-packaged Non-operating Dry Heat),IEC 60068-2-14 (Test Na, Un-packaged Non-operating Thermal Shock): 40 to 85 ?C ( 40 to 185 ?F) Relative HumidityIEC 60068-2-30 (Test Db, Un-packaged Non-operating Damp Heat):5 to 95% noncondensing VibrationIEC60068-2-6 (Test Fc, Operating):5g @ 10-500 Hz ShockIEC60068-2-27 (Test Ea, Unpackaged shock):Operating 30gNon-operating 50g EmissionsCISPR 11:Group 1, Class A (with appropriate enclosure) ESD ImmunityIEC 61000-4-2:8 kV air discharges Radiated RF ImmunityIEC 61000-4-3:10 V/m with 1kHz sine-wave 80%AM from 30 MHz to 1000 MHz EFT/B ImmunityIEC 61000-4-4:?2 kV at 5 kHz on communication ports Surge Transient ImmunityIEC 61000-4-5:?2 kV line-earth (CM) on shielded ports Conducted RF ImmunityIEC 61000-4-6:10Vrms with 1 kHz sine-wave 80%AM from 150 kHz to 30 MHzEnclosure Type RatingNone (open-style)Power Conductors Wire Size Category?12 AWG (2.5 mm?) stranded copper wire rated at 75 ?C or higher3/64 inch (1.2 mm) insulation maximum2Terminal Screw Torque7 pound-inches (0.8 Nm)PROFIBUS CableStandard drop cablePROFIBUS connector Plug9-pin D-shellCertifications (when product is marked)?C-UL-US UL Listed for Class I, Division 2, Groups A, B, C and D Hazardous locations, certified for US and CanadaCE European Union 89/336/EEC EMC Directive, compliant with: EN 61000-6-4; Industrial Emissions EN 50082-2; Industrial Immunity EN 61326; Meas./Control/Lab., Industrial Requirements EN 61000-6-2; Industrial ImmunityC-Tick Australian Radiocommunications Act compliant with AS/NZS CISPR 11, Industrial Emissions PublicationsUser Manual 1794-UM059(1) You use this category information for planning conductor routing as described in Allen-Bradley publication 1770-4.1, Industrial Automation Wiring and Grounding Guidelines.(2) See the Product Certification link at www.ab.com for Declarations of Conformity, Certificates and other certification details.
