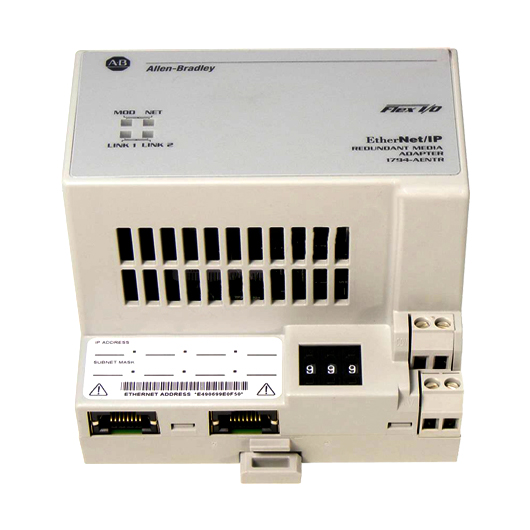

1794-AENTR | Allen Bradley FLEX I/O Dual Port Ethernet/IP Adapter

Technical SpecificationsI/O capacity: 8 modulesCommunication rate: 10/100 MbpsIndicators:Module status red/greenNetwork status red/greenLink 1 status yellow/greenLink 2 status yellow/greenPower supply:To comply with the CE Low Voltage Directive (LVD), this equipment must be powered from a source compliant with the following:Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).Input voltage range:19.2 31.2V DC (includes 5% AC ripple)Input voltage, nom: 24V DCInrush current: 18 A for 2 msFlexBus output current, max: 640 mAIsolation voltage: 50V continuous, Basic InsulationType Tested @ 1000V AC for 60 s, power to FlexBus to EtherNetPower consumption, max: 500 mA400 mA @ 24V DCPower dissipation, max: 7.1 W @ 19.2V DCThermal dissipation: 24.2 BTU/hr @ 24V DCWire size, power conductors: 0.33 3.31 mm? (22 12 AWG) stranded copper wire rated @ 75 ?C (167 ?F) or greater, 1.2 mm (3/64 in.) insulation, maxWire category?:1 - on power ports2 - on communications portsEthernet connector: 2 Ethernet RJ45 Category 5North American temperature code: T5IEC Temp code: T5Terminal screw torque: 0.8 Nm (7 lb-in.)Dimensions, approx. (HxWxD): 87 x 94 x 92 mm (3.4 x 3.7 x 3.6 in.)Use this conductor category information for planning conductor routing as described in the system-level installation manual.
