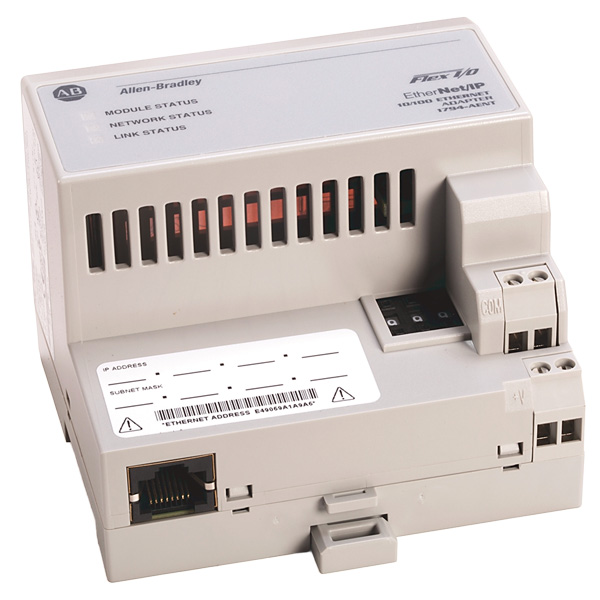

1794-AENT | Allen Bradley FLEX I/O Ethernet/IP Adapter

Technical SpecificationsI/O capacity: 8 modulesPower supply: To comply with the CE Low Voltage Directive (LVD), this equipment must be powered from a source compliant with the following:Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).Input voltage rating: 24V dc nomInput voltage range: 19.2 31.2V dc (includes 5% ac ripple)Communication rate: 10/100 MbpsIndicators:Module Status - red/grnNetwork Status - red/grnLink Status - grnFlexbus output current: 640 mA maxIsolation voltage:50V continuous, Basic Insulation TypeTested at 1000V ac for 60 s, power to Flexbus to EtherNetPower consumption: 550 mA max, 440 mA max at 24V dcPower dissipation: 7.3 W max @ 19.2V dcThermal dissipation: 24.9 BTU/hr @ 19.2V dcEthernet connector: RJ45 Cat. 5Enclosure type rating: None (open-style)North American temp code: T4APower conductorsWire size: 0.34 ... 2.5 mm? (22 ... 12 AWG) stranded copper wire rated at 75°C (167°F) or higher, 1.2 mm (3/64 in.) insulation maxCategory¹: 1 - on power ports; 2 - on communications portsThermal screw torque: 0.8 Nm (7 lb-in)Publications²: User Manual ENET-UM001You use this category information for planning conductor routing as described in Allen-Bradley Industrial Automation Wiring and Grounding Guidelines.For additional installation information, refer to ODVA EtherNet/IP Media Planning and Installation Manual.
