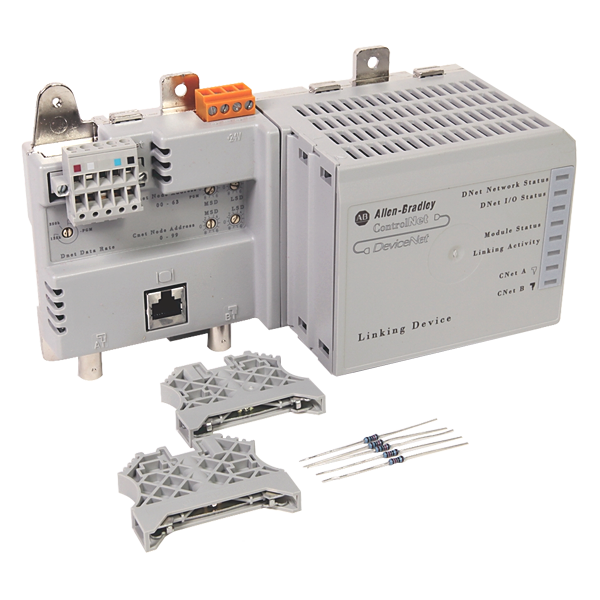

1788-CN2DN | Allen Bradley ControlNet to DeviceNet Linking Device

Part Number: 1788-CN2DNTechnical SpecificationsModel: 1788-CN2DNPower requirements:Input: 24V DC, 500 mADeviceNet: 24V DC, 90 mA, Class 2Isolation voltage:30V (continuous), basic insulation type, between all portsType tested at 720V DC for 60 s.ControlNet connection: RG6DeviceNet connection?: 0.52 mm? (20 AWG), 1485C-P1-Cxxx.Power connection: Power: 0.25 2.5 mm? (22 14 AWG) solid or stranded copper wire rated at 75 ?C (167 ?F ), or greater, 1.2 mm (3/64 in.) insulation max.Wiring category?:3 - on power ports2 - on communication portsDimensions (H x W x D), approx: 120 x 200 x 87 mm (4 11/16 x 7 7/8 x 3 7/16 in.)Enclosure type rating: None (open-style)North American temperature code: T4AIEC temperature code: T4Refer to DeviceNet Media Design Installation Guide.Use this Conductor Category information for planning conductor routing.
