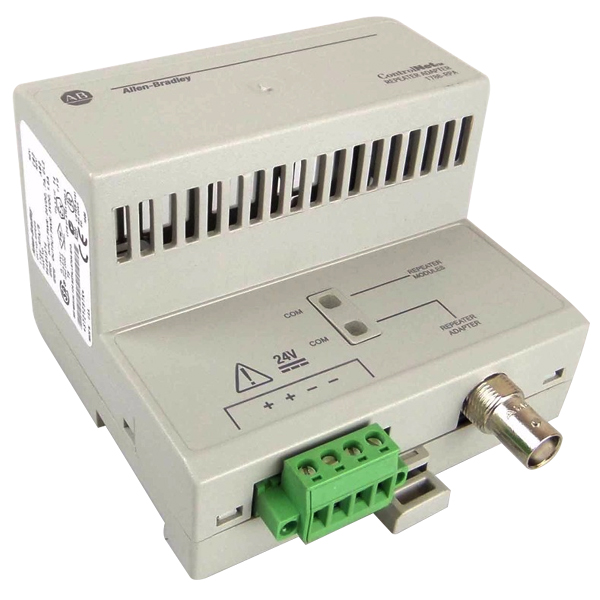

1786-RPA | Allen Bradley ControlNet Modular Repeater Adapter

Part Number: 1786-RPAModel: ControlNet Modular Repeater AdapterManufacturer: Allen BradleyTechnical SpecificationsPower consumption, max: 16.8 WPower dissipation, max: 8.8 WInput current rating, max: 700 mA @ 24V DC max, SELV?Input voltage range?: 18...36V DCBackplane output current, max: 1.6A @ 5V DC, maxIsolation voltage: N/A (SELV), Functional Insulation Type, ControlNet to SystemWire size: 0.21...3.3 mm? (24..12 AWG) solid or stranded copper wire that is rated at 105?C (221?F), or greater, 1.2mm (3/64 in.) insulation max for power connectionsWiring category: 2 - on power ports2 - on ControlNet ports?Terminal block torque specifications: 0.6...0.8 N? (5.3...7.0 Lb?n) on Power RTBEnclosure type rating: None (open-style)North American temp code: T5IECEx temp code: T5ATEX temp code: T5UL certification for 24V DC nominal. Rockwell Automation-specified to 18·6V DC.For applications within the U.S., use a power supply that is appropriately certified as Class 2 per the definition in the National Electrical Code, ANSI/NFPA 70, Article 725. For applications outside the U.S., use a power supply with safety extra low voltage (SELV) or protected extra low voltage (PELV) output. A power supply with SELV or PELV output is built with appropriate isolation to withstand single fault conditions. The output cannot exceed 30V rms, 42.4V peak, or 60V DC under fault conditions.Use this Conductor Category information for planning conductor routing.
