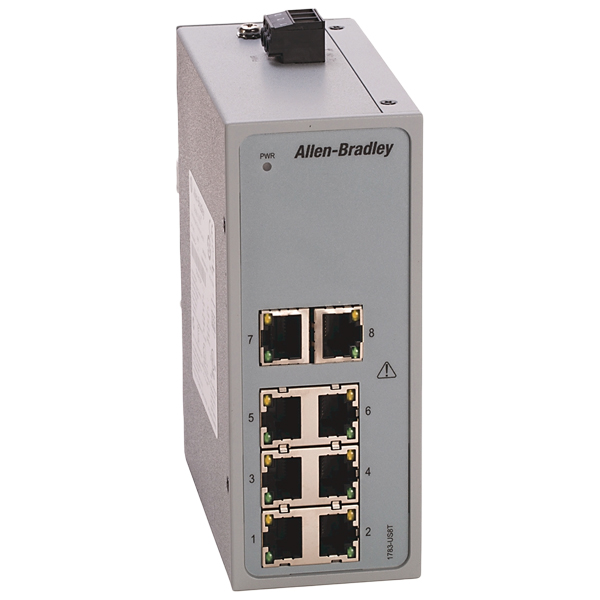

1783-US8T | Allen Bradley Stratix 2000 8T Port Unmanaged Switch

Part Number: 1783-US8TModel: Stratix 2000 SwitchesBrand: Allen BradleyTechnical Specifications - Stratix 2000 SwitchesInrush current, max: 2.2 APower Supply Voltage: 24V (18...60V DC, 18...30V AC 50/60 Hz), Class 2/SELVCurrent rating: 361 mAPower dissipation, max: 4.04 W @ 24V AC/DCIsolation voltage: 30V (continuous), basic insulation type, power to network channelsNo isolation between individual network channelsType tested at 500V AC for 60 sEthernet connection¹: RJ45 connector according to IEC 60603-7, 2-pair or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702DC power connections: 0.75 2.5 mm² (18 14 AWG) twisted-pair copper wire suitable for 30°C (86°F) above surrounding ambient temperature outside the enclosureFunctional earth connection: 2.5 mm² (14 AWG) copper wire suitable for 30°C (86°F) above surrounding ambient temperature outside the enclosure, with a suitable ring terminalTorque, max recommended: 1.82 N m (16 lb in) on power /functional earth connectorWiring category²: 1 - on power ports2 - on communication portsEnclosure type rating: None (open-type)North American temp code: T5IEC temp code: T5MAC addresses, max supported: 8 KSFP modules³: No SFP slotsNOTE:See page 57 for recommended products.Use this conductor category information for planning conductor routing.For specifications of preinstalled SFP modules
