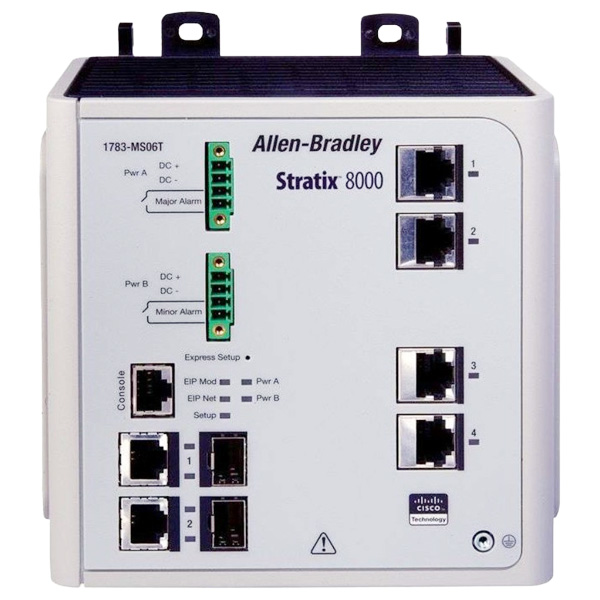

Technical SpecificationsDescription: Stratix 8000 managed switch, Layer 2, 6 portsInrush current, max: 2.0 APower input, max: 2 A max @ 18 ... 60V DC, CL 2/SELVAlarm relay, max: 1 A max @ 30V DC, CL 2/SELVPower consumption, max (Expansion module power not included): 15.1 WPower dissipation: 15.1 WIsolation voltage: 75V (continuous), basic insulation type, power to ground, power to network channels, and power to alarmNo isolation between individual Ethernet portsNo isolation between console port and systemType tested at 1000V AC for 60 sWire size, Ethernet connection (1): RJ45 connector according to IEC 60603-7, 2- or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702Wire size, DC power and alarm connections: 0.5…0.8 mm² (20…18 AWG) solid or stranded copper wire rated at 90°C (194 °F) or greater, 1.2 mm (3/64 in.) insulation maxWire size, ground connection: 3.3…5.3 mm² (12…10 AWG) solid or stranded copper wire rated at 75°C (167°F) or greaterScrew torque, power and alarm terminals: 0.23 N•m (2.0 in•lb)Wiring category (2):2 - on alarm ports2 - on power ports2 - on Ethernet portsEnclosure type rating: None (open-style)Pilot duty rating: Not ratedNorth American temp code: T4IEC temp code: T4
