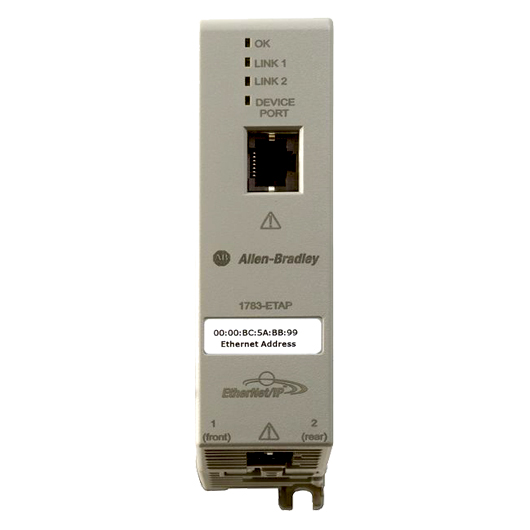

Technical SpecificationModel: 1783-ETAPDescription: EtherNet/IP tap3 copper portsTap type: CopperCurrent consumption, max: 125 mA @ 24V DCDC power supply voltage rating: 24V DC (20.4 27.6V DC) CL 2/SELVIsolation voltage:30V (continuous), basic insulation type, network channels to power and network channels to network channelsType tested at 1250V AC for 60 sPower consumption, max: 3 WPower dissipation: 3 WEthernet connections?: RJ45 connector according to IEC 60603-7, 2- or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702DC power connections: One 0.33 3.3 mm? (22 12 AWG) or two 0.33 1.3 mm? (22 16 AWG) solid or stranded copper wire rated at 75 ?C (167 ?F) or greater, 1.2 mm (3/64 in.) insulation maxTorque: 0.6 0.8 N m (5 7 lb in) on power connectorsWiring category?:1 - on power ports2 - on communication portsEnclosure type rating: None (open-style)North American temp code: T5IEC temp code: T5See page 56 for recommended products.Use this conductor category information for planning conductor routing.
