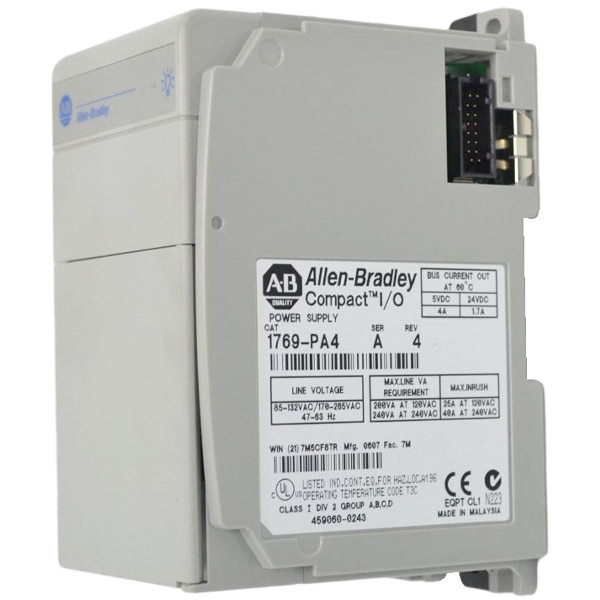

1769-PA4 | Allen Bradley CompactLogix Power Supplies

Specifications:Model1769-PA4Input voltage range85 132V AC or 170 265V AC, switch selectableInput frequency range47 63 HzPower supply distance rating¹8 (8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules)Operating altitude2000 m (6562 ft)Isolation voltage265V (continuous), Reinforced Insulation Type (IEC Class 1 grounding required)Routine tested at 2596V DC for 1s, AC Power Input to SystemPower consumption200 VA @ 120V AC; 240 VA @ 240V ACPower dissipation18 W @ 60°CCurrent capacity at 5V4.0 ACurrent capacity at 24V2.0 AInrush current, max25 A @ 132V ACFuse typeWickmann 19195-3.15ALittelfuse 02183.15MXPDimensions (HxWxD), approx.118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)height including mounting tabs is 138 mm (5.43 in.)Wiring category²1 on power portsWire size2.5 mm² (14 AWG) solid copper wire rated at 90°C (194°F), or greater, 1.2 mm (3/64 in.) insulation maxNorth American temp codeT3CIEC temp codeN/AEnclosure type ratingNone (open style)Note: When configuring your system using a MicroLogix 1500 controller, only one expansion cable, one expansion power supply and a total of eight I/O modules may be used in a maximum of two banks of I/O modules. The expansion power supply cannot be directly connected to the MicroLogix 1500 controller.Use this Conductor Category information for planning conductor routing.
