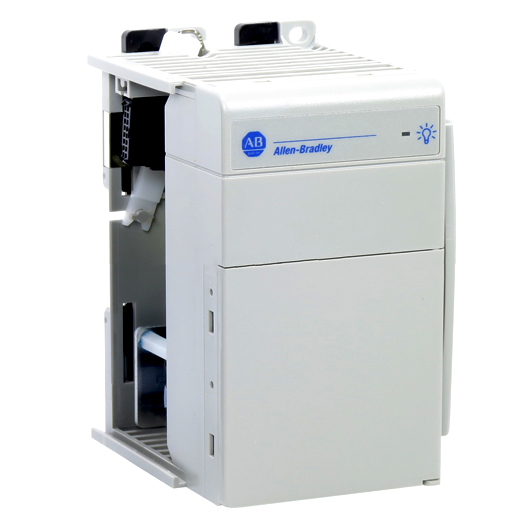

1769-PA2 | Allen Bradley Compact I/O Expansion Power Supplies

Model Number: 1769-PA2Model1769-PA2Input voltage range85 265V ACInput frequency range47 63 HzPower supply distance rating¹8 (8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules)Operating altitude2000 m (6562 ft)Isolation voltage265V (continuous), Reinforced Insulation Type (IEC Class 1 grounding required) Routine tested at 2596V DC for 1s, AC Power Input to System and AC Power Input to 24V DC User PowerPower consumption100 VA @ 120V AC130 VA @ 240V ACPower dissipation8 W @ 60°CCurrent capacity at 5V2.0 ACurrent capacity at 24V0.8 AInrush current, max25 A @ 132V ACFuse typeWickmann 19195-3.15ALittelfuse 02183.15MXPDimensions (HxWxD), approx.118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)height including mounting tabs is 138 mm (5.43 in.)Shipping weight, approx525 g (1.16 lb)Wiring category²1 on power portsWire size2.5 mm² (14 AWG) solid copper wire rated at 90 ?C (194 ?F), or greater, 1.2 mm (3/64 in.) insulation maxNorth American temp codeT3CIEC temp codeN/AEnclosure type ratingNone (open style)Note: When configuring your system using a MicroLogix 1500 controller, only one expansion cable, one expansion power supply and a total of eight I/O modules may be used in a maximum of two banks of I/O modules. The expansion power supply cannot be directly connected to the MicroLogix 1500 controller.Use this Conductor Category information for planning conductor routing.
