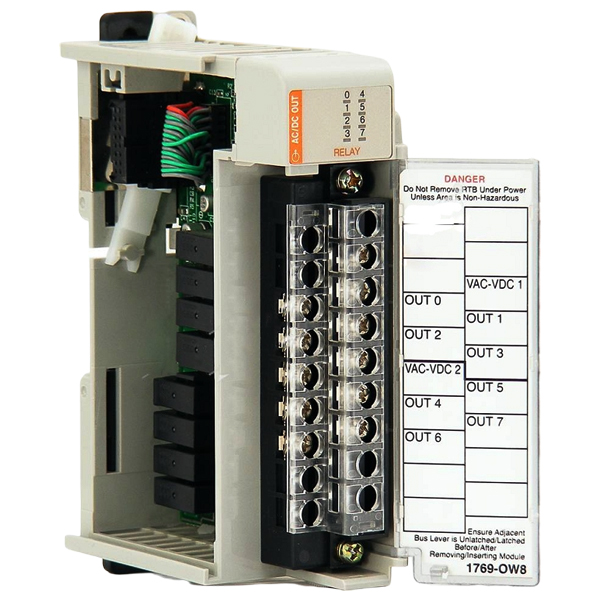

1769-OW8 | Allen Bradley 1769 Compact Digital Contact Output Module

Specifications:Model1769-OW8Outputs8 normally open (4 points/group)Operating voltage range5 265V AC5 125V DCInput delay, on10 msInput delay, off10 msCurrent draw @ 5.1V125 mACurrent draw @ 24V100 mAHeat dissipation, max2.83 WOff-state leakage, max0 mAOn-state current, min2 mACurrent per point, max2.5 ACurrent per module, max16 AIsolation voltageVerified by one of the following dielectric tests: 1836V AC for 1 s or 2596V DC for 1 s, output point to bus and group to group265V AC working voltage (IEC Class 2 reinforced insulation)Weight, approx280 g (0.61 lb)Dimensions (HxWxD), approx118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)Height with mounting tabs 138 mm (5.43 in.)Slot width1Module locationDIN rail or panel mountPower supply1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4Power supply distance rating8 modulesTerminal screw torque0.68 N m (6 lb in)Retaining screw torque0.46 N m (4.1 lb in)Wire size(22 14 AWG) solid(22 16 AWG) strandedWire typeCu-90 ?C (194 ?F)IEC input compatibilityType 1+Replacement terminal block1769-RTBN10 (1 per kit)Replacement door label1769-RL1 (2 per kit)Replacement door1769-RD (2 per kit)Vendor ID code1Product type code7Product code86Enclosure type ratingNone (open-style)
