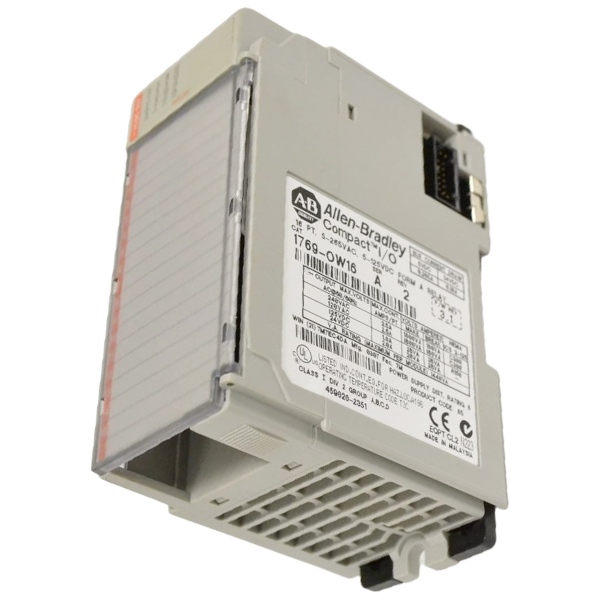

1769-OW16 | Allen Bradley Compact™ 16-Point AC/DC Relay Output Module

Technical SpecificationsOutputs: 16 normally open (8 points/group)Operating voltage range:5...265V AC5...125V DCInput delay, on: 10 msInput delay, off: 10 msCurrent draw @ 5.1V: 205 mACurrent draw @ 24V: 180 mAHeat dissipation, max: 4.75 WOff-state leakage, max: 0 mAOn-state current, min: 10 mA @ 5V DCCurrent per point, max: 2.5 ACurrent per module, max: 20 AIsolation voltage:Verified by one of the following dielectric tests: 1836V AC for 1 s or 2596V DC for 1 s, output point to bus265V AC working voltage (IEC Class 2 reinforced insulation)Verified by one of the following dielectric tests: 1836V AC for 1 s or 2596V DC for 1 s, group to group265V AC working voltage (basic insulation)150V AC working voltage (IEC Class 2 reinforced insulation)Dimensions (HxWxD), approx: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)Slow width: 1.5Module location: DIN rail or panel mountPower supply distance rating: 8 modulesTerminal screw torque: 0.68 N m (6 lb in)Retaining screw torque: 0.46 N m (4.1 lb in)Wire size:(22 14 AWG) solid(22 16 AWG) strandedWire type: Cu-90°C (194°F)Vendor ID code: 1Product type code: 7Product code: 85Enclosure type rating: None (open-style)
