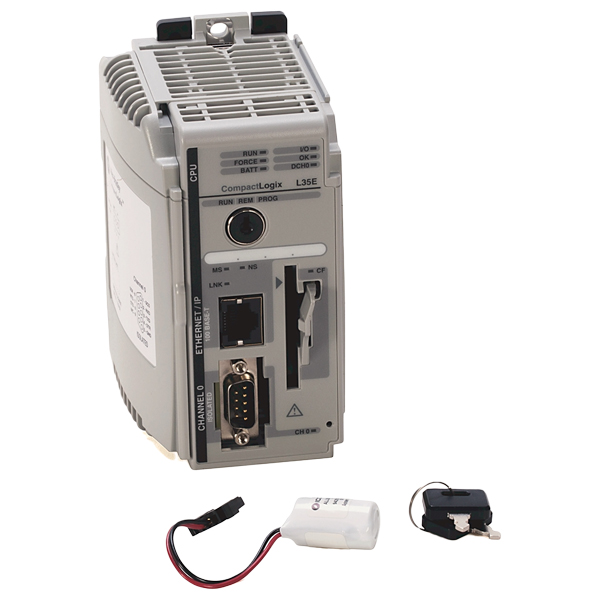

1769-L35E | Allen Bradley 1769 Modular CompactLogix Controller

Model1769-L35EUser memory1.5 MBOptional nonvolatile memory1784-CF128Number of l/O modules, max30Number of I/O banks, max3Number of expansion I/O modules, max30 1769 modulesReplacement battery1769-BACurrent draw @ 5V DC660 mACurrent draw @ 24V DC90 mAPower dissipation, max5.5 WIsolation voltage30V (continuous), Basic Insulation TypeType tested at 710V DC for 60 s; RS-232 to system, Ethernet to system, RS-232 to EthernetCommunication portsRS-232 Fully Isolated 38.4 Kbps maxEthernet port 10/100 BASE-TSerial cables1756-CP3 or 1747-CP3, right angle connector to controller, straight to serial port, 3 mWeight, approx0.30 kg (0.66 lb)Slot width1Module locationDIN rail or panel mountPanel-mounting screw torque1.1 1.8 N m (10 16 lb in) - use M4 or #8 screwsEmbedded power supply1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4Power supply distance rating4 modulesWire category¹2 - on communication portsNorth American temperature codeT4AIEC temperature codeT4Enclosure type ratingNone (open-style)Use this conductor category information for planning conductor routing.
