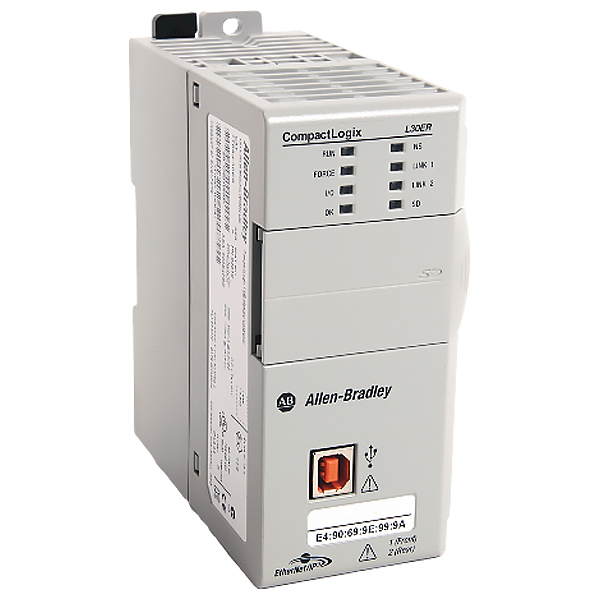

1769-L30ER | Allen Bradley CompactLogix 5370 L3 Controller

Model1769-L30ERUser memory1 MBOptional nonvolatile memory1784-SD1 card with 1 Gb of available memory (shipped with controller)1784-SD2 card with 2 Gb of available memory (available for separate ordering)Number of local expansion modules, max?Eight 1769 Compact I/O modulesNumber of I/O module banks, max3Current draw @ 5V DC, controller power500 mACurrent draw @ 24V DC, controller power225 mACurrent draw @ 24V DC, field power, maxN/APower dissipation, max4.5 WIsolation voltage30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to EthernetType tested at 500V AC for 60 sShort circuit protection, field powerN/ARecommended external short circuit protection, field powerN/AWeight, approx0.31 kg (0.68 lb)Module width55.00 mm (2.17 in.)Module locationDIN rail or panel mountPanel-mounting screw torque1.1 1.8 N m (10 16 lb in) - use M4 or #8 screwsEmbedded power supply1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4Power supply distance rating Controller and 1769-SDN: 4 1769 Compact I/O modules: 4 8, depending on moduleWire category?2 - communication portsWire type, EthernetRJ-45 connector according to IEC 60603-7, 2 or 4 pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702Wire type, power terminals and embedded I/O connectionsN/AWire size, power terminals?N/AWire stripping length, power terminals?N/AScrew torque, power terminals?N/AWire size, embedded I/O connectionsN/AWire stripping length, embedded I/O connectionsN/ANorth American temperature codeT5IEC temperature codeT5Enclosure type ratingNone (open-style)You can use up to the maximum number of local expansion modules with the CompactLogix 5370 L1 controllers that are listed as long as the total current drawn by the embedded I/O and local expansion modules does not exceed both the available POINTBus backplane current of 1 A and the field power current of 3 A.Use this Conductor Category information for planning conductor routing.Regarding the CompactLogix 5370 L1 controllers, this specification applies to connecting wires to the power connector that is inserted in the controller.
