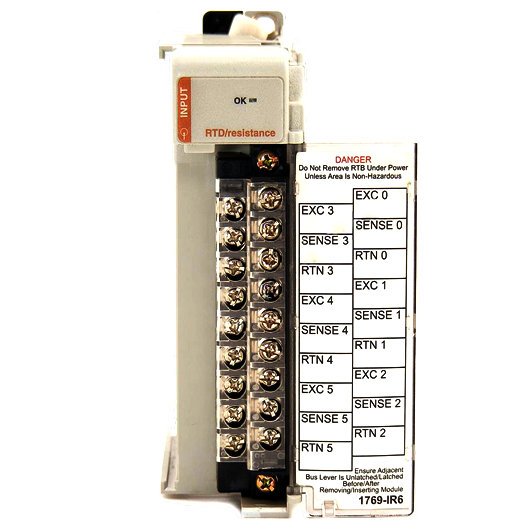

1769-IR6 | Allen Bradley Compact I/O RTD/Resistance Input Module

Technical SpecificationsModel: 1769-IR6Sensors supported:100, 200, 500, 1000 Platinum 385100, 200, 500, 1000 Platinum 3916120 Nickel 672120 Nickel 618120 Nickel-iron 518Current draw @ 5.1V: 100 mACurrent draw @ 24V: 35 mAHeat dissipation, max: 1.5 WConverter type: Sigma DeltaCommon mode voltage range: ?10V DC maxCommon mode rejection: 110 dB @ 50 Hz with the 10 or 50 Hz filter selected110 dB @ 60 Hz with the 10 or 60 Hz filter selectedNormal mode rejection ratio:70 dB @ 50 Hz with the 10 or 50 Hz filter selected70 dB @ 60 Hz with the 10 or 60 Hz filter selectedCable impedance, max: 25 Input impedance: > 10 M Terminal screw torque:0.68 N m (6 lb in)0.46 N m (4.1 lb in)Recommended cable:2-wire configuration: Belden 9501 or equivalent3-wire configuration: Belden 9533 or equivalent4-wire configuration: Belden 83503 or equivalentWire size:(22 14 AWG) solid(22 16 AWG) strandedWire type: Cu-90°C (194°F)IEC input compatibility: Type 1+Replacement terminal block: 1769-RTBN18 (1 per kit)Replacement door label: 1769-RL2 series B (2 per kit)Replacement door: 1769-RD (2 per kit)Vendor ID code: 1Product type code: 10Product code: 37Enclosure type rating: None (open-style)
