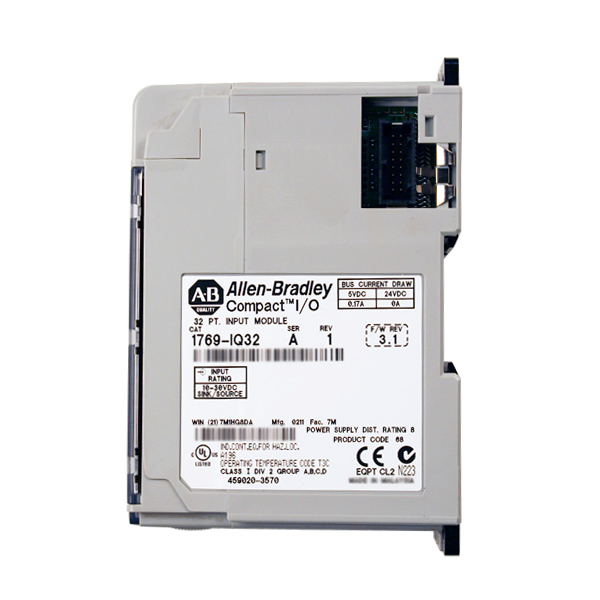

1769-IQ32 | Allen Bradley 1769 Compact Digital DC I/O Module

Technical SpecificationsInputs: 32 (8 points/group)Voltage category: 24V DC sink/sourceOperating voltage range:10...30V DC @ 30°C (86°F)10...26.4V DC @ 60°C (140°F)Input delay, on: 8 msInput delay, off: 8 msCurrent draw @ 5.1V: 170 mAHeat dissipation, max: 4.6 WOff-state voltage, max: 5V DCOff-state current, max: 1.5 mAOn-state voltage, min: 10V DCOn-state current, min: 2 mAInrush current, max: 250 mAInput impedance, nom: 5.2 k @ 24V DC; 6.1 k @ 30V DCIsolation voltage: Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, input point to bus and group to group 75 V DC working voltage (IEC Class 2 reinforced insulation)Weight, approx: 440 g (0.97 lb)Dimensions (HxWxD), approx: 118 x 52.5 x87 mm (4.65 x 2.07 x 3.43 in.)Slot width: 1.5Module location: DIN rail or panel mountPower supply distance rating: 8 modulesTerminal screw torque: 0.68 N m (6 lb in)Retaining screw torque: 0.46 N m (4.1 lb in)Wire size:(22...14 AWG) solid(22...16 AWG) strandedWire type: Cu-90?C (194?F)IEC input compatibility: Type 1+Vendor ID code: 1Product type code: 7Product code: 68Enclosure type rating: None (open-style)
