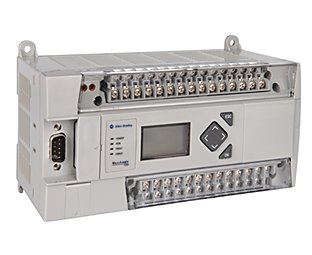

1766-L32BWAA | Allen Bradley MicroLogix 1400 Programmable Controller

Model1766-L32BWAADimensions, HxWxD 90 x 180 x 87 mm3.5 x 7.087 x 3.43 in.Shipping weight 0.9 kg (2.0 lbs)Number of I/O24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)Power supply voltage100 240V AC (-15%, +10%) @ 47 63 HzHeat dissipationRefer to the MicroLogix 1400 Programmable Controllers User ManualPower supply inrush current120V AC: 25 A for 8 ms240V AC: 40A for 4 msPower consumption120 VA24V DC sensor power24V DC @ 250 mA400 ?F maxInput circuit typeDigital: 24V DC sink/source (standard and high-speed)Analog: 0 10V DCOutput circuit typeRelayRelay life - ElectricalRefer to Relay Life ChartRelay life - Mechanical20,000,000 cyclesEnclosure type ratingNone (open-style)Wire size0.25 2.5 mm? (22 14 AWG) solid or stranded copper wire rated @ 90 ?C(194 ?F) or greater.Wiring category?2 - on signal ports2 - on power ports3 - on communications portsTerminal screw torque0.79 Nm (7.0 in-lb) ratedPilot duty ratingC300, R300Expansion busSupports up to seven 1762 modules, up to a maximum of 5V, 1500 mA and 24 V, 1500 mA.North American temp codeT3CUse this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines.
