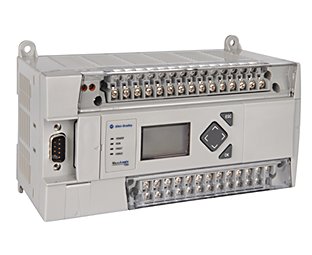

1766-L32BWA | Allen Bradley MicroLogix 1400 Programmable Controller

Description:Large memory to solve a variety of applicationsTrue online editing allows tuning of program, including PID, without going offlineSupport for MicroLogix 1400 controller online editing in RSLogix 500 Professional, Standard, and Starter software version 8.1 and later, as well as RSLogix Micro.Mode switch for Run/Remote/Program through LCD keypad operationTime-based or event-triggered data logging capability stores controller data records with an optional time stamp in a separate 128 Kbyte memory area for later analysisRecipe storage that is accessible by your ladder program, enabling quick and easy batch changes of program data for timers, counters, and other data types.High-performance expansion I/O options Twelve high-speed inputs that can be used individually as latching (pulse-catch) inputs, event interrupts, or alternately combined as three 100 kHz high-speed counters featuring 10 modes of operation.Two available built-in 0…10V DC analog outputs with 12-bit resolutionThree high-speed outputs that can be configured as 100 kHz pulse train output (PTO) or 40 kHz as pulse width modulated (PWM) outputsMultiple input commons let you use the controller for either sinking or sourcing input devices, and multiple output commons provide individual isolation in multi-voltage output applicationsOne, 1 ms, selectable timed interrupt (STI)High-resolution, 1 ms timersEmbedded real-time clockEmbedded web server with email functionalityOptional memory module for external program backup, for program transport, and transfer to another controllerProgram and data in the controller are also battery-backed for secure storageData file download protection prevents critical user data from being altered via program downloads from programming computers or memory modulesBuilt-in LCD provides access to binary and integer files that can be changed, or optionally protected, for monitor only access by an operatorLCD instruction allows the controller to output messages to the LCD, and optionally receive user inputIP address can be monitored and configured directly through the built-in LCDTwo built-in digital trim potentiometers32-bit signed integer mathFloating-point and double-integer data file supportBuilt-in PID capabilitiesFinger-safe removable terminal blocks meet global safety standardsCustomizable OEM logos on the LCD displayRegulatory agency certifications for worldwide marketModel1766-L32BWA Dimensions, HxWxD 90 x 180 x 87 mm3.5 x 7.087 x 3.43 in.Shipping weight 0.9 kg (2.0 lbs)Number of I/O24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)Power supply voltage100 240V AC (-15%, +10%) @ 47 63 HzHeat dissipationRefer to the MicroLogix 1400 Programmable Controllers User ManualPower supply inrush current120V AC: 25 A for 8 ms240V AC: 40A for 4 msPower consumption120 VA24V DC sensor power24V DC @ 250 mA400 ?F maxInput circuit typeDigital: 24V DC sink/source (standard and high-speed)Analog: 0 10V DCOutput circuit typeRelayRelay life - ElectricalRefer to Relay Life ChartRelay life - Mechanical20,000,000 cyclesEnclosure type ratingNone (open-style)Wire size0.25 2.5 mm? (22 14 AWG) solid or stranded copper wire rated @ 90 ?C(194 ?F) or greater.Wiring category?2 - on signal ports2 - on power ports3 - on communications portsTerminal screw torque0.79 Nm (7.0 in-lb) ratedPilot duty ratingC300, R300Expansion busSupports up to seven 1762 modules, up to a maximum of 5V, 1500 mA and 24 V, 1500 mA.North American temp codeT3CUse this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines.
